This machine is a small laboratory vacuum disperser, and its scope of application includes paint, ink, adhesive, electronic slurry, medicine, food, and other fine chemical industries.
Technical Parameters
Product Description:

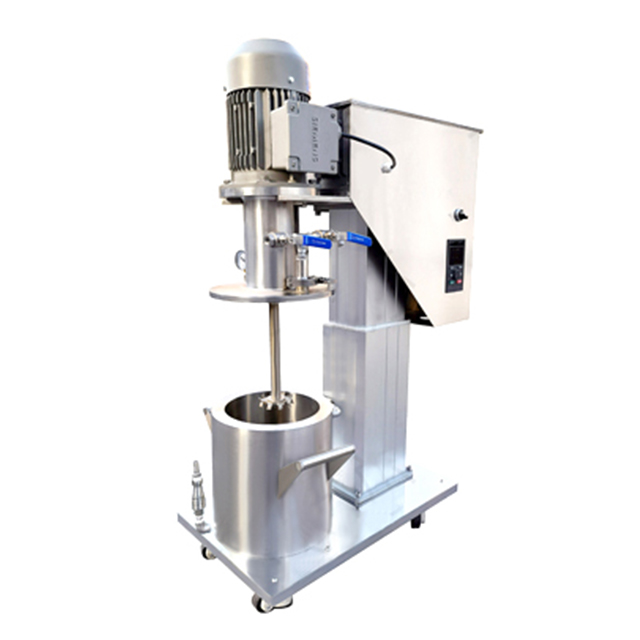

This machine is a small laboratory vacuum disperser, and its scope of application includes paint, ink, adhesive, electronic slurry, medicine, food, and other fine chemical industries. It can be applied to scientific experiment, production simulation and new product development, or industrial production of small and medium batch products.
The machine can be vacuumed, lifted electrically, and can be cooled;
Product Features:
1. Vacuum machine, with a vacuum degree of -0.098Mpa;
2. Lightweight structure, electric lifting, flexible use, fast and stable speed;
3. Industrial-grade motor, continuous production
4. Equipped with frequency converter, speed 0-140rpm/0 -3000rpm;
5. All stainless steel outer surface, clean and sanitary,
4. Full explosion-proof type can be customized,
7.0.5-30L processing capacity
Technical Parameters:
| 1. Motor power | 0.75/1.1/1.5/2.2KW |
| 2. Voltage | 220V/380V, 50Hz, or according to customer requirements; |
| 3. Equipped with frequency converter, frequency conversion speed regulation | 0-1500/3000r/min |
| 4. Processing capacity | 0.5-30L (using water as the medium) |
| 5. Diameter of the dispersion plate | 60, 80, 100mm |
| 6. Lifting stroke | 500mm |
| 7. Weight | 68kg |
| 8. Contact material material | SS304 or SS316L |
| 9. Dimensions | 810*710*1500mm |
