Scope of application: Horizontal sand mill is a kind of sand mill widely used in non-metallic mineral industries such as coatings, dyes, paints, inks, medicine, magnetic horizontal sand mill powder, ferrite, photosensitive film, pesticides, papermaking and cosmetics.
Technical Parameters

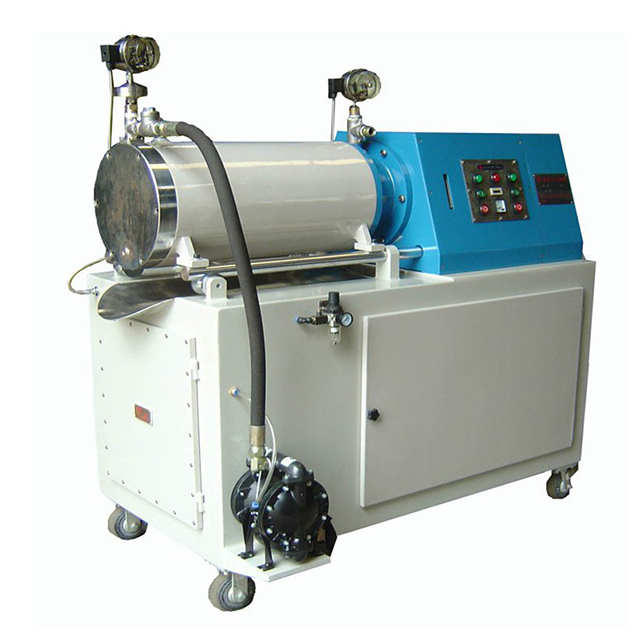

Scope of application: Horizontal sand mill is a kind of sand mill widely used in non-metallic mineral industries such as coatings, dyes, paints, inks, medicine, magnetic horizontal sand mill powder, ferrite, photosensitive film, pesticides, papermaking and cosmetics. High-efficiency wet ultra-fine grinding and dispersing machinery is the essence of the company's current domestic and foreign similar models. It has the advantages of high efficiency, strong work continuity, less pollution, reliable automatic control, etc., and low cost, compact structure, generous shape, and easy maintenance. Convenience, especially with strong practicality.
Working principle: The horizontal sand mill uses a material pump to feed the solid-liquid phase mixture material pre-dispersed and wetted by the mixer into the barrel, and the material and the grinding medium in the barrel are stirred by the high-speed rotating disperser, so that the The solid particles in the material and the grinding medium produce more intense collision, friction and shearing action with each other, so as to achieve the purpose of accelerating the grinding of fine particles and dispersing aggregates. After grinding and dispersing, the grinding medium is separated by a dynamic separator and flows out from the discharge pipe. The horizontal sand mill is especially suitable for dispersing and grinding products with high viscosity and fine particle size.
product description:
Main features of horizontal sand mill:
●Advanced design, closed continuous production, uniform grinding and dispersing fineness, good quality and high production efficiency.
●The material is produced in a closed state, which effectively prevents the drying and crusting of the material and the volatilization of the solvent.
●Double mechanical seal, double protection, zero leakage.
●The new dynamic separation structure makes the material discharge more smooth and less wearing parts.
●It is equipped with a movable disassembly bracket for the outer cylinder, which is very convenient for disassembly and maintenance. The feeding pump adopts gear pump or pneumatic diaphragm pump, which is convenient to adjust the feeding size and has reliable working performance. In addition, the horizontal sand mill does not need a special installation foundation, and the installation position can be changed at any time as needed.
Technical Parameters:
| Model | KS-VM-SM5 |
| Effective volume | 5 |
| Host power kw | 5.5 |
| Spindle speed r/min | 1440 |
| Material viscosity pa·s | ≤10 |
| Production capacity kg/h | 14-200 |
