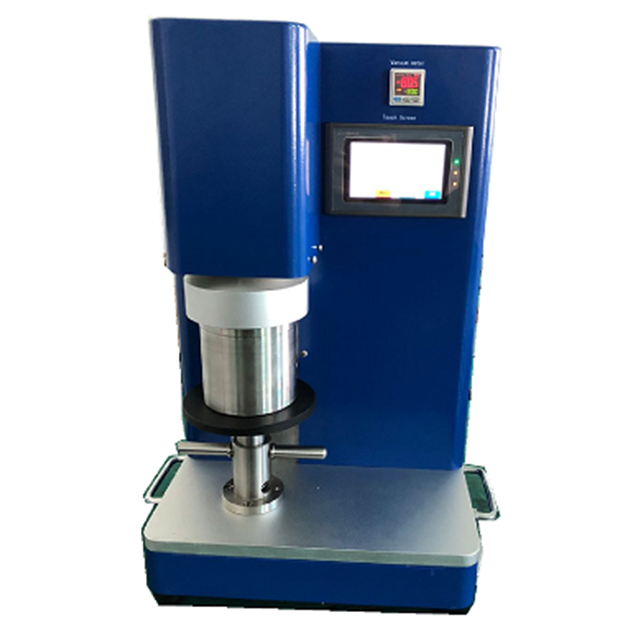

High-efficiency precision vacuum mixer for battery preparation with 10L capacity KS-VM-10L

Product Description:

1. Rotation and revolution, efficient mixing and kneading, no dead corners, viscosity 0-1.5 million cp;
2. The processing capacity of laboratory and industrial grade to 2500L can be used;
3. Ultimate negative pressure 0-0.098Mpa, good vacuum holding;
4. Temperature controllable, accuracy ±2℃, range: 0-220℃;
5. Low-speed kneading and high-speed dispersing in one, simultaneously;
6. Various mixing configurations: twist frame, claw, door frame, paddle, hook, etc.;
7. Discharge method: extrusion discharge, positive pressure discharge, pump delivery;
8. It is suitable for the production processes of liquid/liquid, solid/liquid, paste/paste, powder/paste, and material density, and medium to high viscosity (1.5 million cp) in various industries; such as: battery positive and negative Polar paste (lithium iron phosphate, lithium manganate, lithium cobalt oxide, lithium nickel cobalt manganese oxide ternary materials, lithium nickel cobalt aluminate, lithium-rich materials, lithium titanate, lithium iron phosphate), electronic slurry, new energy Materials, polymer compounds, sealants, construction adhesives, medical cosmetics, etc.

Application :

mixing, polymerization, crushing, dispersion of high-viscosity, elastoplastic materials, etc.
1. Resin: a variety of resins;
2. Polymer composite materials, carbon fiber resin materials, etc.;
3. Battery slurry: lithium battery slurry, positive and negative electrode materials, conductive slurry, etc.;
4. Adhesive: high-viscosity sealing Glue, construction glue, viscose, electronic glue, electronic thermal conductive glue, hydrogel, etc.
5. Petrochemical: anti-corrosion and anti-rust coating, solder paste, ceramic slurry,
6. Silicone: silicone resin material

Product Features:

• Sanitary grade: the contact material part is made of SS304/316L material, outsourcing stainless steel/pure stainless steel; suitable for medicine, biology, cosmetics and other industries;

• Complete specifications: 0.3-10L processing capacity;
• high vacuum: mechanical seals and multiple soft seal design, the degree of vacuum -0.098MPa, packing 24 hours;
• Temperature Controlled: 0-220 deg.] C, accuracy ± 1 ℃, in direct contact with the material / barrel wall temperature, can be Circulating cooling water, oil temperature machine, electric heating rod heating;
• Processing technology: mixing paddle casting molding, machining center modulation, mirror polishing, to ensure accuracy and strength;

• Mixing paddle: standard twist frame type mixing paddle, additional folding Leaf, claw type, hook type, straight frame type for selection;
• Mixing efficiency: low clearance, with scraping wall, plunger valve/three valve, mixing without dead angle, suitable for mixing medium and high viscosity materials (0-1 million cps);
• Structure: floor-standing or workbench structure, bright and clean and beautiful;
• Operation panel: manual button or PLC panel control

Technical Parameters:
