Home - Products - Vacuum Mixing Machine - Compact Three Rollers (Zirconia) Mill for High Viscosity Slurry

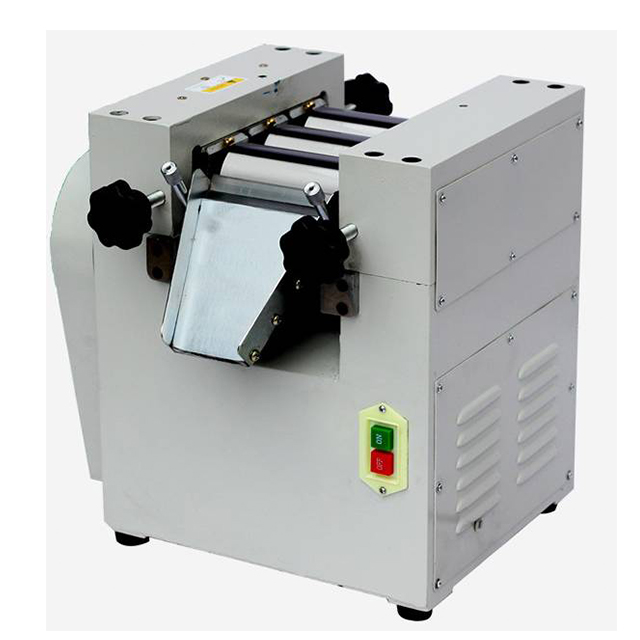

The laboratory three-roller mill is suitable for paste or high-viscosity materials that need to be dispersed and require high fineness; the surfaces of the three horizontal rollers are pressed against each other, and the distance between the rollers is adjusted by hand.
Technical Parameters
Product Description:
The laboratory three-roller mill is suitable for paste or high-viscosity materials that need to be dispersed and require high fineness; the surfaces of the three horizontal rollers are pressed against each other, and the distance between the rollers is adjusted by hand. The friction of the speed achieves the grinding effect. Equipped with emergency stop button to prevent equipment damage caused by falling foreign objects. The rollers are cast in special cemented carbide and can also be made of pure zirconia.
Technical Parameters:
| Model | KS-VM-3R |
| Voltage | 110V/220V |
| Driving power | 0.75KW |
| Roller length | 128mm |
| Roller diameter | 65mm |
| Dimensions | 420mm*420mm*450mm |
| Machine weight | 75kg |
| Speed range | 23/66/178 rpm/min |
| Material viscosity | ≤3,000,000cps |
| Production capacity | 0.5-10kg/h |
| Roller Material | Alloy Roller |
