Home - Products - Vacuum Mixing Machine - 250ml/500ml Compact Dual-Shaft Planetary Vacuum Mixer for Lithium Battery Materials

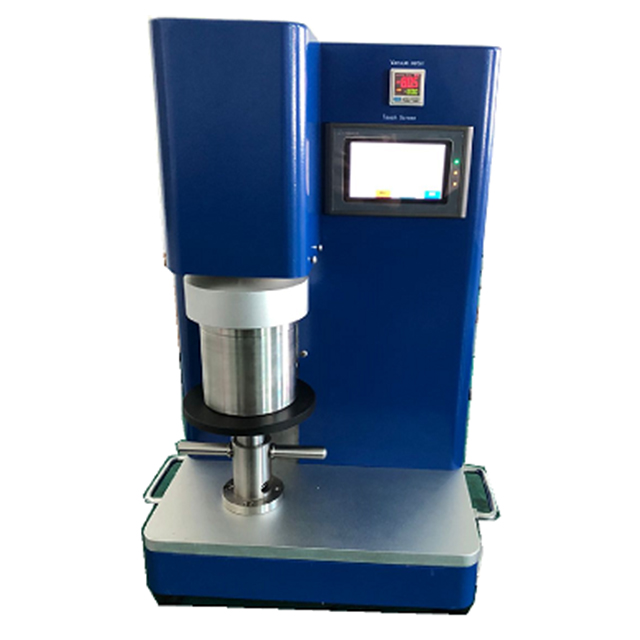

KS-VM-XJB is a compact dual-shaft planetary vacuum mixer. Compared to single shaft models, the dual shaft mixer comes with three segments programmable mixing speed from 0 - 600 rpm, which provides more uniform slurry mixing.
Technical Parameters
Features
KS-VM-XJB is a compact dual-shaft planetary vacuum mixer. Compared to single shaft models, the dual shaft mixer comes with three segments programmable mixing speed from 0 - 600 rpm, which provides more uniform slurry mixing. It has a built-in pump for removing gas bubble, which can vacuum the mixing container to -0.08 MPa. It is a high-quality mixer tool for preparing battery electrode paste and various ceramic materials in a research lab.
Technical Parameters:
| Model | KS-VM-XJB |
| Voltage Input & Power | One listed 100-240 VAC IN |
| Rotary Speed | 0 - 600 rpm |
| Mixing Container | 1. One 500 mL stainless steel vacuum sealed container is included. 2. Dual helical ribbon mixing blades are built on the lid of the container. |
| Vacuum Pump | Built-in single stage vacuum pump Vacuum Level: -0.08 MPa |
| Contol Panel | 1. Color touch screen control allows easy setting of parameters such as mixing speed, mixing time, vacuum on/off 2. Mixing Time: 0 - 600 minute 3. Mixing Speed: 0 - 600 RPM and 3 segments programmable 4. Note: Max. mixing speed depends on slurry viscosity. Max.10000 mPa.s is allowed at 600 rpm. Lower speed will be required for more sticky slurry |
| Timing Range | 0 to 120 minutes for built-in mechanical timer |
| Dimensions | 330 mm x 320 mm × 570 mm |
| Warranty | two years limited warranty with lifetime technical support |
| Net Weight | 40 kg (88 lbs) |
