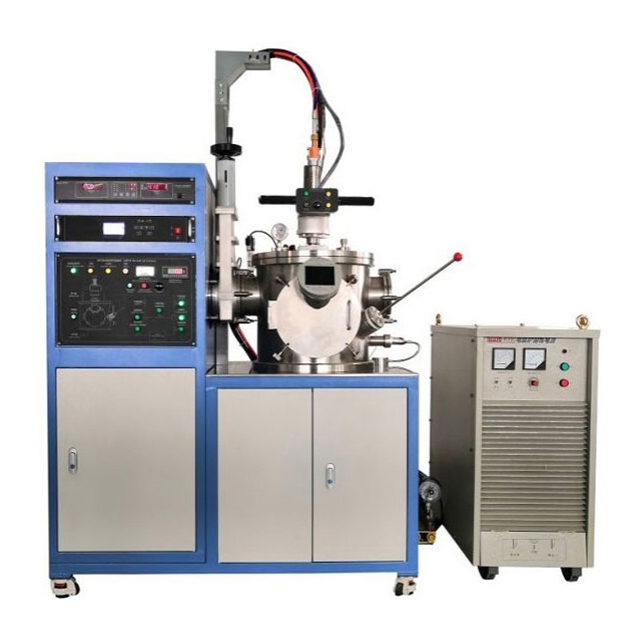

Vacuum electric ARC melting furnace KS-VF-ARC200

Maximum melting capacity 200g,

Double-layer water-cooled stainless steel cavity with a vacuum of 10-5orr



Technical Parameters

Main feature :

1. Double-layer water-cooled stainless steel cavity with a vacuum of 10-5orr

2, water-cooled copper enamel with 3 different melting stations

3. stations. Maximum melting capacity 200g

4. The argon arc electrode is driven by a motor, which is easy to move up and down.

5. Press a mechanical operating lever to flip the sample under vacuum or atmosphere protection

Technical Parameters:

ModelKS-VF-ARC200
The power supply15KW, 50/60Hz, AC380V, three phase
The maximum starting current 800A
The melting chamberDouble water-cooled cavity, made of SS304 stainless steel
Cavity size Φ400mm x 350mm with quartz viewing window
Vacuum degree10 -6 torr (with molecular pump, in cold state)Need to pass high-purity Ar gas (5N) to generate arc
water-cooled copper matteWater-cooled copper enamel with 3 different melting stations
1 station.Maximum melting capacity 80g, with magnetic stirring system
2 stations. Maximum melting capacity 150g, with vacuum suction device
3 stations. Maximum melting capacity 200g
vacuum pumpEquipped with a molecular pump system that allows the melting chamber to reach a vacuum of 10-5 Torr
circulating water cooler (optional)Optional circulating water cooler for water melting chamber, copper crucible and electrode water cooling
working gas (not included)Requires high purity Ar gas (5N) or Ar, H2 mixture 5% H2+95%Ar
