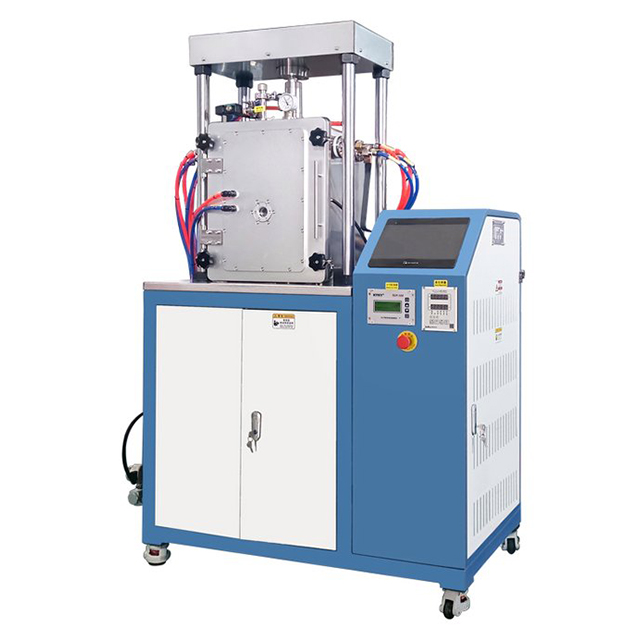

Home - Products - Vacuum Furnace - Spark plasma sintering furnace with HIP processing and 20T pressure
This equipment is mainly used by colleges, universities, scientific research institutions, etc. to carry out pressurized heating and sintering treatment on metal compounds, ceramics, inorganic compounds, nanomaterials, etc. under vacuum or protective atmosphere conditions in order to obtain high-density products, such as the production of high-precision silicon nitride ceramic bearings, etc.
Technical Parameters
Product Description:
This equipment is mainly used by colleges, universities, scientific research institutions, etc. to carry out pressurized heating and sintering treatment on metal compounds, ceramics, inorganic compounds, nanomaterials, etc. under vacuum or protective atmosphere conditions in order to obtain high-density products, such as the production of high-precision silicon nitride ceramic bearings, etc.
Technical Parameters:
| Product Model | KS-SPS-20T |
| Power supply | three-phase 380V 50Hz |
| Output current | DC 0-6000A |
| Output voltage | DC 0-12V |
| Maximum temperature | 2100℃ |
| Rated temperature | room temperature-2000℃ |
| Number of temperature control zones | one zone |
| Temperature control method | thermocouple temperature measurement at low temperature of 1000℃, infrared temperature measurement at high temperature above 1000℃ |
| Temperature control accuracy | ≤1000 degrees ±1℃. ≧1000℃ ±1~2℃ |
| Cold state vacuum limit | ≤6.7*10-3Pa (empty furnace, cold state, after baking and degassing) |
| Inflatable atmosphere | inert gas |
| Inflatable pressure (slightly positive pressure) | ≤0.03MPa |
| Maximum pressure | 20T (hydraulic digital display, automatic pressure adjustment, automatic pressure maintenance, manual function reserved) |
| Working area pressure head size diameter | Ф150 mm |
| Sample size | Ф10~150mm sintering sample size depends on sintering sample temperature |
| Pressure fluctuation | ≤±200N, displacement accuracy ≤0.02mm |
| Pressure stroke | 0~100mm (digital display) |
| Pressure control | hydraulic electric control |
| Control mode | touch screen + plc mode |
| Heating rate | ≤600℃/min |
