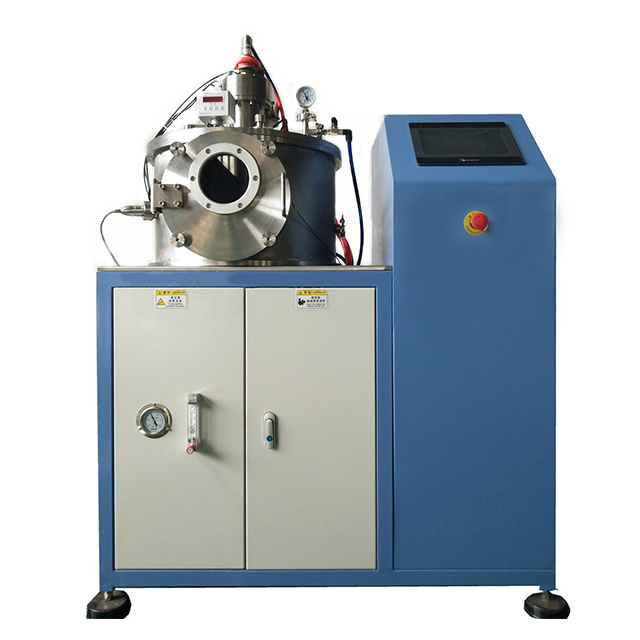

Various metals and their alloys can be cast. Its vacuum system, optimized design of centrifugal system and high-frequency power supply jointly promote the quality of castings to be denser than traditional casting methods, without pores.
Technical Parameters
Description:
Various metals and their alloys can be cast. Its vacuum system, optimized design of centrifugal system and high-frequency power supply jointly promote the quality of castings to be denser than traditional casting methods, without pores. After casting, there is little metal residue in the crucible. The shape of the raw material can be: block material, powder material, bar material, filament material, flake material and other shapes.
Technical Parameters:
| 1. Product model | KS-VF-VCC200 |
| 2. Input power | three-phase 380V±10 |
| 3. Input capacity | 15KVA |
| 4. Output power | 10-15KW |
| 5. Maximum melting temperature | 1700℃ |
| 6. Maximum melting volume | 200 grams (Fe), |
| 7. Cold state ultimate vacuum | 5*10E-2mbar ( bipolar direct pump system) |
