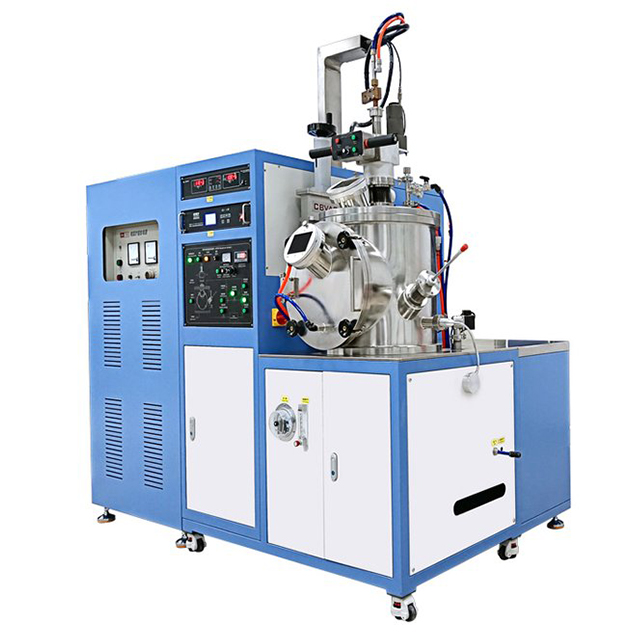

non-consumable electric ARC vacuum melting furnace with magnetic stirring function

Non-consumable vacuum electric arc furnaces are mainly used for melting high melting point metals/alloys. Widely used in refractory metals and refractory metal alloys. It is suitable for scientific research and small-batch preparation of new materials for vacuum smelting in colleges and universities and scientific research institutes.


Technical Parameters

ModelKS-VF-ARC400
Vacuum chamberØ400*400mm
Vacuum degree10ˉ²Torr~10 ˉ ⁶Torr, depend on pump
Crucible3 melting cavity,1 casting cavity,1   melting degassing cavity, each cavity is 60g
Max temperature3500C
Limit vacuum level5Pa~ 5*10ˉ⁴ Pa
Atmosphere gasArgon
Power100Kw
Voltage380V,3 phase
Max output current1250A
DimensionAbout 1600mm*1200*2200mm
