Home - Products - Vacuum Furnace - Lab 1300C high vacuum molybdenum wire furnace for Metal material annealing
The vacuum molybdenum wire furnace can be used for vacuum sintering, tempering and annealing of metal materials such as powder metallurgy, cemented carbide, copper, tungsten, titanium alloy and alloy materials composed of refractory metals
Technical Parameters

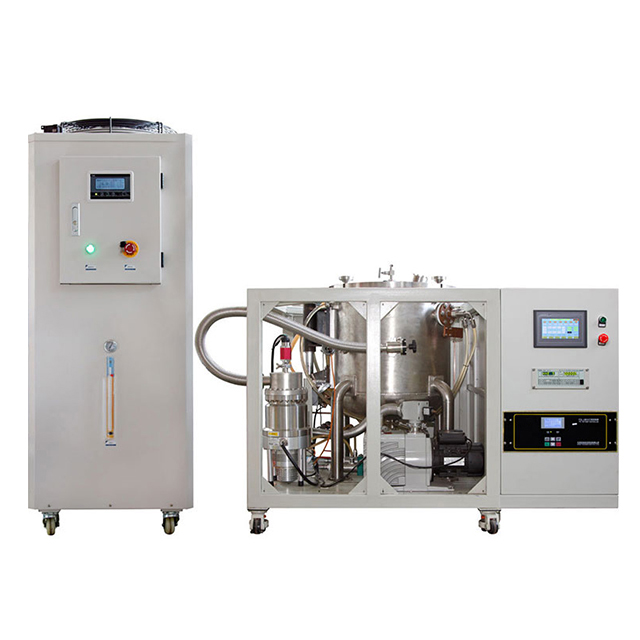

The vacuum molybdenum wire furnace developed by our company is a vacuum resistance furnace using molybdenum wire or molybdenum sheet as heating element. It can be used for vacuum sintering, tempering and annealing of metal materials such as powder metallurgy, cemented carbide, copper, tungsten, titanium alloy and alloy materials composed of refractory metals. It can also be used for heat treatment of metal materials.
Technical Parameters:
| Model | KS-VF-M1300 |
| Equipment form | Vertical top cover open |
| Heating method | Molybdenum wire resistance heating |
| Heating power | 35KW+10% |
| Work area size | Φ250×300 (D×H) |
| Max temperature | 1400℃ |
| Commonly used temperature | 1300℃ (the temperature for acceptance standard) |
| Temperature field uniformity | ≤±5℃ |
| Ultimate vacuum | 6.67×10-4Pa (empty furnace, cold state, purified) |
| Temperature control accuracy | ±1℃ |
| Pressure rise rate | ≤1.0Pa/h |
| Temperature control instrument | PID program temperature control |
| Temperature sensor | B type thermocouple |
| Control mode | Manual / PLC automatic interlock protection control |
| Protective atmosphere | Argon or high purity nitrogen, Pressure ≤0.03MPa (adjustable) |
| Equipment configuration list | 1. Furnace body 2. Electrical control cabinet 3. Vacuum system 4. Industrial chiller 5. Graphite mold 6. Instruction manual |
