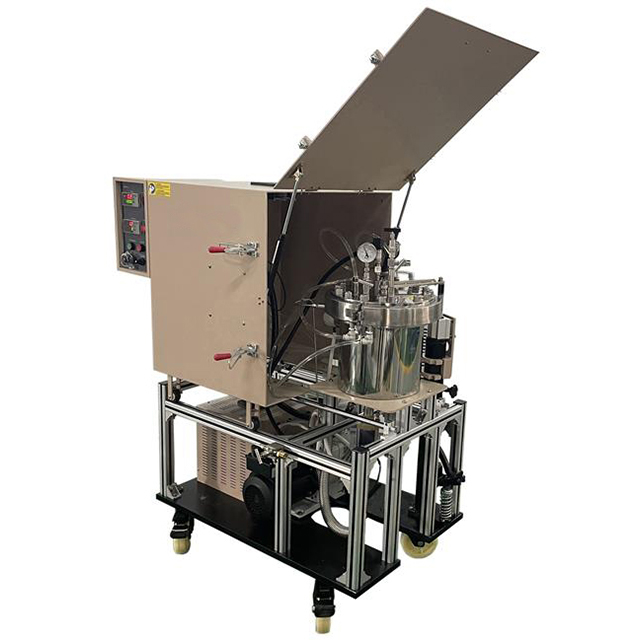

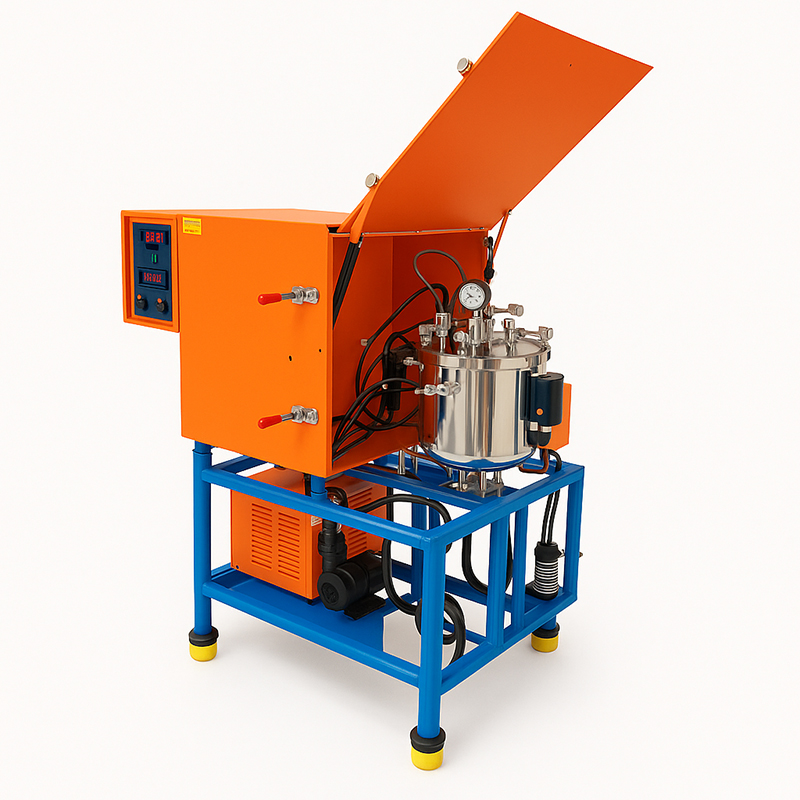

Hot isolate press (HIP) furnace for powder metallurgy with max 10Mpa pressure

· Furnace chamber is   made of stainless steel ( SS304 )· The pressure   release valve is built in to avoid the pressure beyond max pressure.

· Steel explosives   proof box is included, the furnace can be slid into the box during operation   for safe operation

· The mobile cart is   included for easy moving to safety location

· Water Cold Furnace   case  is made of SS304 steel

 o Inside Dia:      205 m

o Outside Dia: 271   mm

o Height:           250 mm· Digital   high-pressure sensor and  gauge are included

· 1/4" Gas   inlet and outlet with high-pressure valves are included

· The safety   pressure valve is installed

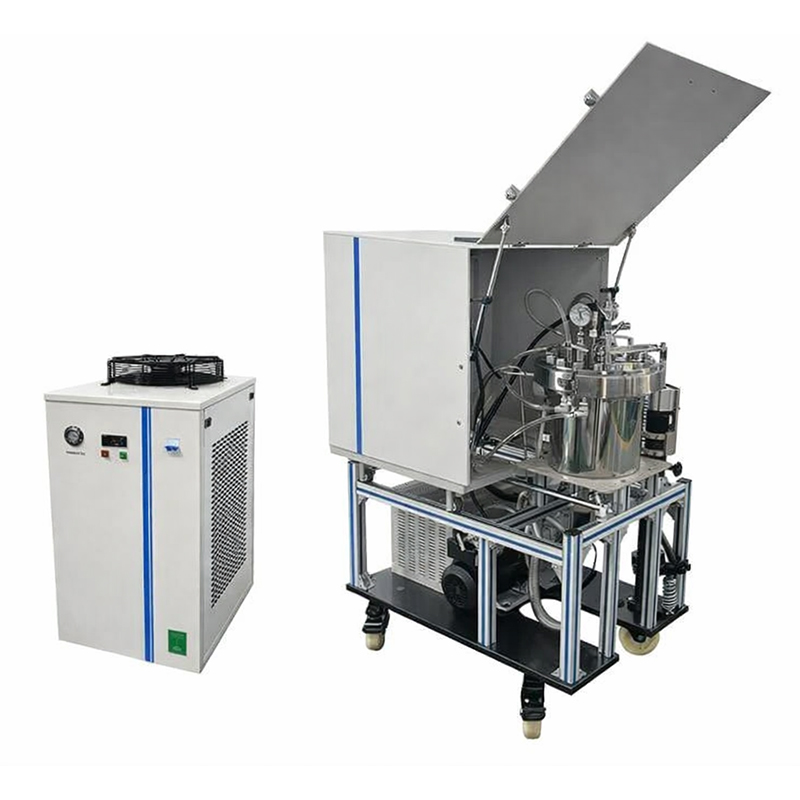

· Water cooling   jacket  and water chiller are included

· FeCrAl resistance   wire heating with multi-reflection plateso

· Inside   Diameter:   80 mm

Length:    130 mmo

Capacity:   0.65 L

· Max. sample   size: 70 mm Dia x 130 mm H

· Max. Working   Temperature:     1200ºC  max.

· Heating Rate:    10ºC/min

· 30 Segment   programmable digital temperature controller is included

· Over-temperature   and a thermal couple breaking are protected

· Temperature   accuracy:  +/-  1°CTemperature Control

· S type thermal   couple built-in

· 10 MPa  at   1200ºC under Ar gas

 · Working Gas:      Ar, N2   ( if use O2, please let us know, we have to   change heating element )

· Two pressure   release valves are built in for double safety: one electric-magnetic valve   and one mechanical check valve, which will release pressure at the set point.·

· The furnace also   can be used as a vacuum furnace with the optional vacuum pumpo Double stage   mechanical pump can reach 10- 2 torro

 Small Turbopump   can reach 10-5 torro
