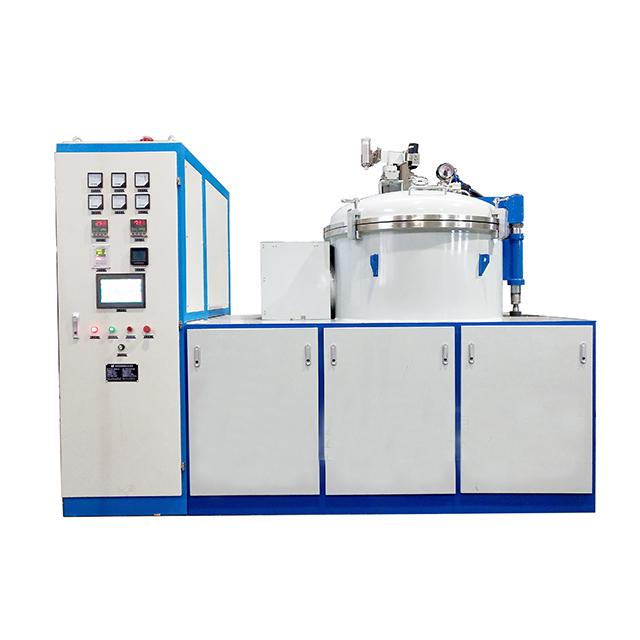

The ultra-high temperature furnace body up to 2600°C can fully meet the sintering and graphitization of various materials.
The furnace body is equipped with a mechanical explosion-proof valve with automatic pressure relief function to ensure safety.
Technical Parameters
The ultra-high temperature furnace body up to 2600°C can fully meet the sintering and graphitization of various materials.
Adopt digital display intelligent temperature control system, automatic, high-precision temperature measurement and control process, the system can heat up according to a given heating curve, and can store 20 heating curves with a total of 400 different processes.
Adopting internal circulating pure water cooling system and digital flow monitoring system. Intelligent PLC security monitoring can realize remote control, with paperless recording of various parameters, automatic storage, automatic control and protection system for water, electricity, and gas, and internal network port connection.
The furnace body is equipped with a mechanical explosion-proof valve with automatic pressure relief function to ensure safety.
| Model | KS-VF-GF100 |
| Capacity | 100L (Optional) |
| Max working temperature | Room temperature to 2600℃ |
| Atmosphere | Vacuum ,Hydrogen, Nitrogen etc |
| Temperature uniformity | ≤10℃ |
| Temperature measurement | Infrared tools with 900-3500℃ |
| Temperature measurement accuracy | 0.2-0.75% |
| Temperature control | Program control and manual |
| Temperature control accuracy | ±1℃ |
| Max heating rate | 60℃/ min |
