Vacuum Furnace

Home - Products - Vacuum Furnace - Goldsmith Machine for Smelting 1-2kg gold Induction Melting Furnace KS-VF-DH1

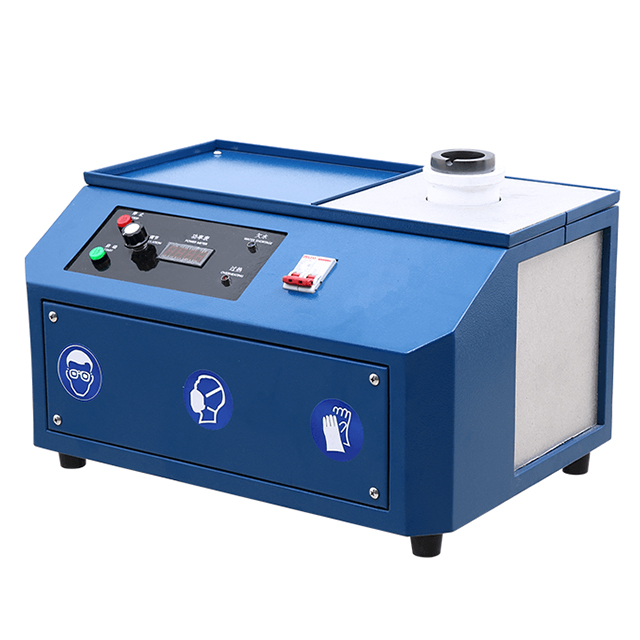

Goldsmith Machine for Smelting 1-2kg gold Induction Melting Furnace KS-VF-DH1

Gold Jewelry melting furnace is based on the latest and most advanced IGBT induction technology, the top speedy melting could be realized within 2-4 minutes. The crucible is extractable by means of matched tong.


Technical Parameters

Product Description:

Gold Jewelry melting furnace is based on the latest and most advanced IGBT induction technology, the top speedy melting could be realized within 2-4 minutes. The crucible is extractable by means of matched tong.

Technical Parameters:

ModelKS-VF-DH1
Power source:Single phase 220V±10%,50/60Hz
Applicable metal:Gold, Silver, Copper and their alloys
Melting time:2 minutes
Max capacity:Gold: 1.0 kg; Silver: 0.6 kg
Max temperature: 1600℃
Dimension: 520*400*330mm
Weight: 21 kg
Heating technology:Induction heating
