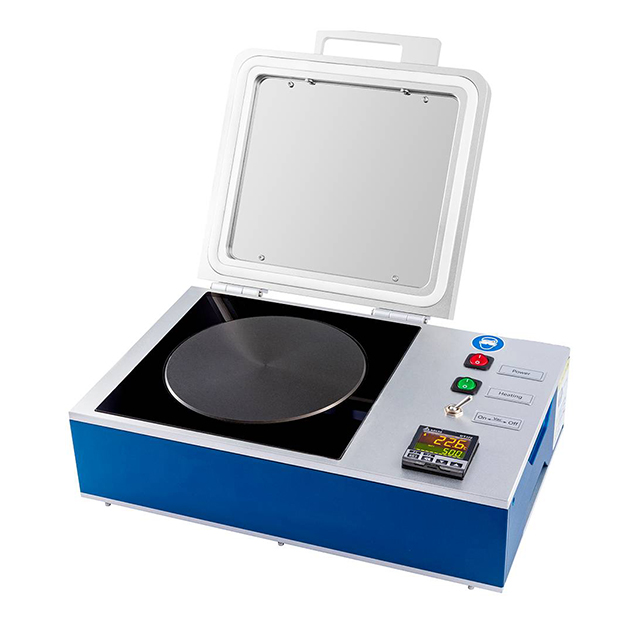

Home - Products - Spin Coater and Spray Pyrolysis - Precision glue film hot plate baking machine KS-SP-HP6
Heating output independent circuit control, improve the safety performance of the equipment can manually switch vacuum adsorption substrate, close contact with baking mode
High precision digital display temperature control meter control, can be equipped with linear temperature control function with hot radiation seal cover, hard anodized alumina heating panel
Technical Parameters
Product Features:
All anode alumina fuselage structure, simple and beautiful
The precision of temperature control is high, the thermal uniformity is good, and the practicability is strong.
Heating output independent circuit control, improve the safety performance of the equipment can manually switch vacuum adsorption substrate, close contact with baking mode
High precision digital display temperature control meter control, can be equipped with linear temperature control function with hot radiation seal cover, hard anodized alumina heating panel
The sinking design of heating structure is small in size and convenient in glove box.
Technical Parameters:
| Model | KS-SP-HP6 |
| Size of heating panel | φ 170mm circle |
| Temperature control range | room temperature-250 °C |
| Temperature resolution | 0.1 °C |
| Temperature control accuracy | + 0.2 °C (after temperature stabilization) |
| Temperature uniformity | ≤ 1% |
| Power input | 220V, 5A, 800W |
| Suitable substrate size | less than 6 inches of wafer |
| Vacuum interface | outer diameter 6mm of rear plate outlet of equipment |
| Vacuum input requirements | 0.04~0.09Mpa |
| Size | 370mm (W) * 270mm (D) * 126mm (H) |
