Touch panel or software control of various features like mandrel rotating speed, duration, syringe pump flow rate, X-Y plate stage speed, etc.
Rotating mandrel target collector and the stationary X-Y plate target collector are provided with the system.
Technical Parameters
Product Features:
Touch panel or software control of various features like mandrel rotating speed, duration, syringe pump flow rate, X-Y plate stage speed, etc.
Rotating mandrel target collector and the stationary X-Y plate target collector are provided with the system.

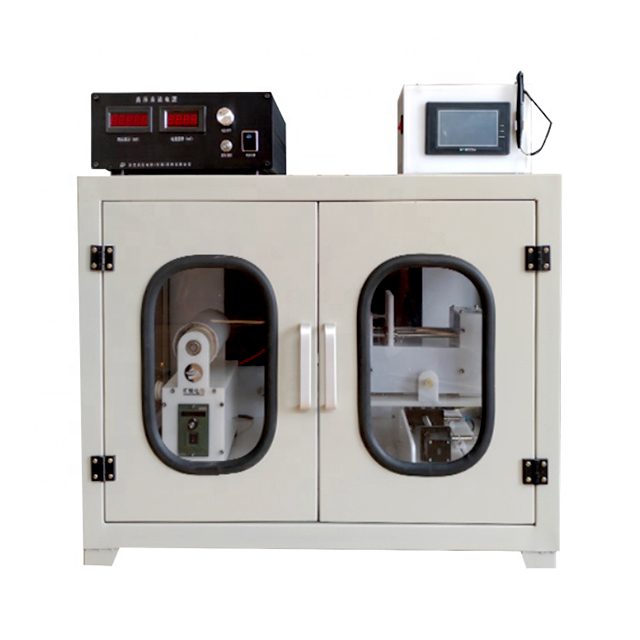

Desktop fume hood has features like the halogen light heating and venting port on top, humidity display, and the transparent door for monitoring the electrospinning process.
Technical Parameters:
| Model | KS-ESP-11 | |
| Item | Detail | |
| Power | 220V,50/60Hz | |
| Single Metering pumps | 1ml,5ml,10ml,20ml,30ml,50m,100ml; 3 Clamp for 3 Syringe. DoubleSingle Metering pumps | |
| High voltage power supply | Positive | 0-30Kv,Digital |
| Negative | 0--10Kv,Digital(optional) | |
| Heating source | Nozzle Frame | 7 holes, The height adjustable, angle adjustable. |
| Single Nozzle Diameter | 0.1-1.6mm | |
| Coaxial Nozzle(Optional) | Inner Diameter<0.84mm Max:18G/14G Big:19G/15G Normal:22G/17G | |
| Parallel nozzle(Option) | Get Mixed fiber film,2 fiber mixed together | |
| Combined Nozzle(Optional) | Get layered fiber film,2 fiber layered | |
| Micro nozzle system(Optional) | No need soft pipe, less liquid will be fine | |
| Nozzle Moving device | Moving distance:0-200mm,Moving speed: Stepless speed regulation Precision speed:1-2000mm/min, Precison:1mm/min | |
| Rotating collector | Rotating speed | Low:65-1300rpm; Optional: Normal:120-3000rpm;High:100-1500rpm; Precision:0.1-600rpm,error:0.1r/min |
| Roller size | D=89mm,L=200mm(optional) | |
| Flat wire retractor(Optional) | Dimension:20*20cm | |
| X-Y-Z(Optional) | X-Y-Z moving direction | |
| Box | Metal box+Anticorrosive materials+3 sides window Exhaust System Lighting system | |
| Safety system | Grounding | |
