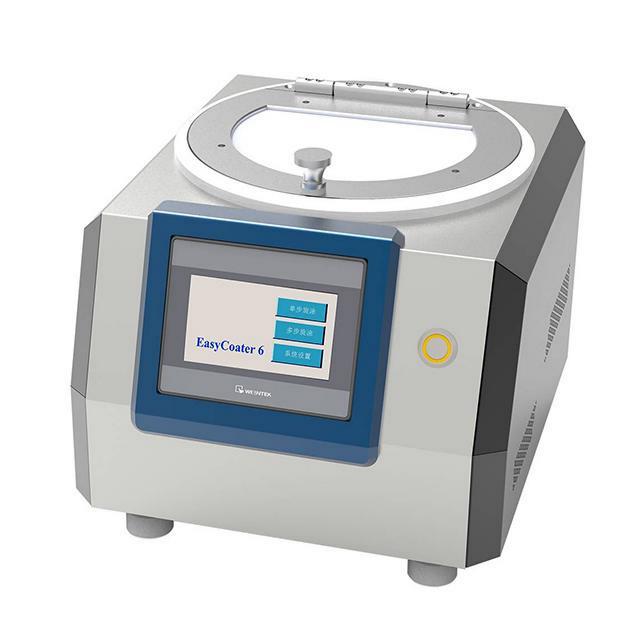

Home - Products - Spin Coater and Spray Pyrolysis - Flexible small spin coater for 6 inch sample KS-SP-EZ6
Industrial BLDC motor and single chip microcomputer control 4.3 inch full color touch screen man-machine interface operation superpolymer material cavity, stainless steel shell specially designed anti-glue, anti-blocking glue function can be upgraded one way to accurately measure the automatic dispensing function
Technical Parameters
Product Features:
Industrial BLDC motor and single chip microcomputer control 4.3 inch full color touch screen man-machine interface operation superpolymer material cavity, stainless steel shell specially designed anti-glue, anti-blocking glue function can be upgraded one way to accurately measure the automatic dispensing function with vacuum switch and cover switch safety interlock function maximum recommended substrate size: 6 inch circular substrate
Technical parameters:
| Model | KS-SP-EZ6 |
| Speed range | 100-12000rpm |
| Speed resolution | 1rpm |
| Adjustable acceleration range | 100-30000rpm/s |
| Maximum single step size | 3000s |
| Time resolution | 0.1s |
| Program control | Optional single-step or multi-step run, programmable 10 groups of 10-step programs |
| Power supply | AC110V and AC220V are optional, and the interface between Chinese and English is optional. |
| Vacuum Sucker | Standard 10mm, 25mm, 55mm three diameter specifications vacuum carrier disk size |
| Out Dimension | 256mm (W) * 358mm (D) * 258mm (H) |
