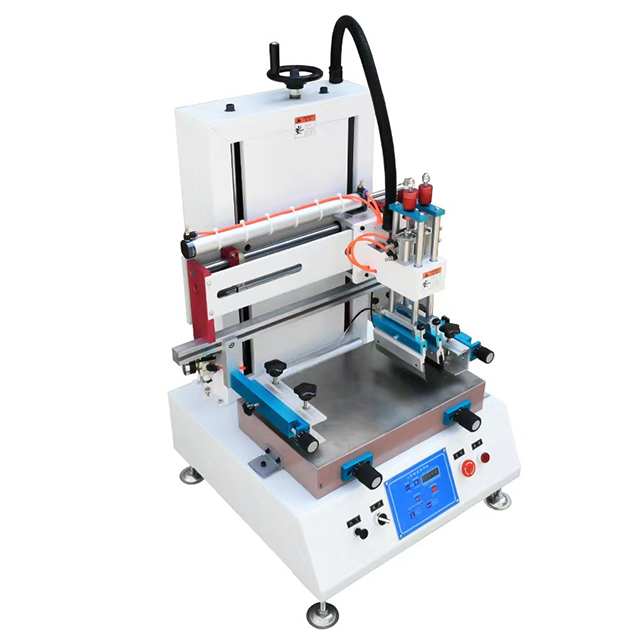

KS-SPC-3050 is a benchtop precision screen printing machine driven by compressed gas with coating area 300mm x 500 mm It is cost effective tool to make various film coating with pattern and can be used for making flexible rechargeable battery electrode, OLED or thermoelectric device.
Technical Parameters
KS-SPC-3050 is a benchtop precision screen printing machine driven by compressed gas with coating area 300mm x 500 mm It is cost effective tool to make various film coating with pattern and can be used for making flexible rechargeable battery electrode, OLED or thermoelectric device.
Technical Parameters:
| Features | · Two types of operation mode: feed pedal and automatic · Digital display to count printing number· Vacuum chunk to hold sheet faster and easier· Printing knife is driven b compressed gas with constant pressute to ensure repeatable quality printing· Printing length, width and knife angle are adjustable for quality printing |
| Working Voltage | · 208 - 240V Single Phase, 50/60Hz· For 110V, a 100W Transformer can be purchased separately |
| Substrate Holder | · Substrtae is held by the vacuum chuck.with area 300 x500 mm· Effective. printing area: 280 x 350 mm· Substrate thickness: 0 - 80 mm adjustable |
| Position adjustment & accuracy | · +/- 0.08 mm |
| Compressed Gas Requirment | · The compressed air pump is required for operation· 0.5-0.6 MPa pressure required· Compressed Air pump is not included, please click link below to order one if you don't have |
| Dimension | 750 L × 650W × 850H, mm |
| Net Weight | 90 kg |
| Shipping Dimension & Weight | 250 lbs |
