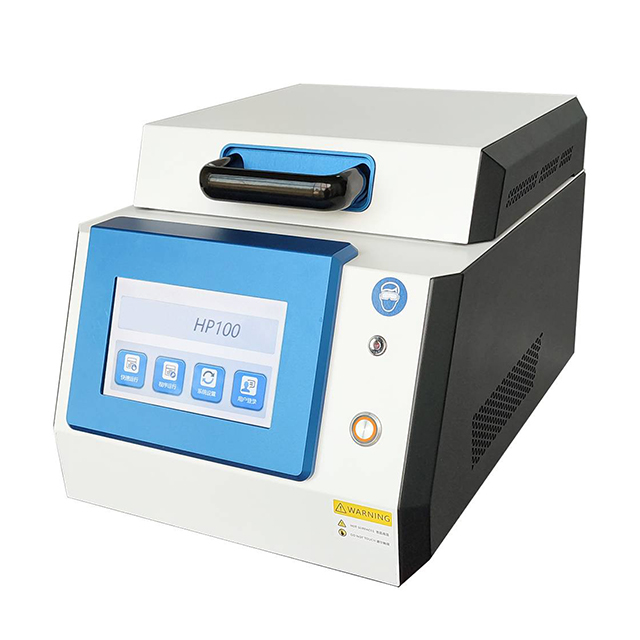

Home - Products - Spin Coater and Spray Pyrolysis - Advanced program control glue film hot plate KS-SP-HP100
Hard anodic alumina corrosion resistant panel
7 inch full color touch screen operation, advanced PLC control can reduce the operation height, embedded installation design with automatic lifting function, close to baking mode belt linear temperature control and vacuum adsorption function
Technical Parameters
Product Features:
Hard anodic alumina corrosion resistant panel
7 inch full color touch screen operation, advanced PLC control can reduce the operation height, embedded installation design with automatic lifting function, close to baking mode belt linear temperature control and vacuum adsorption function
Technical parameters:
| Model | KS-SP-HP100 |
| Heating panel size | 220mm*220mm square |
| Power input | 220V, 2800W (110V optional) |
| Temperature control range | room temperature-300 °C |
| Temperature resolution | 0.1 °C |
| Temperature control accuracy | + 0.2 °C |
| Temperature uniformity | 200 °C ≤ 1%, 200 °C ~ 300 °Cs1.5% can store 100 groups of baking gel formula, each formula can set 5 heating stages electric thimble adjustment height 0-30mm |
| Thimble height resolution | 0.1mm.The thimble can use substrate diameter larger than 40mm wafer, special requirements can be customized vacuum interface HP100- PE equipment rear plate outlet outer diameter 6mm |
| Vacuum input requirements | 0.04~0.09Mpa |
| Out dimension | 303mm(W)* 446mm(D)*295mm(H) |
