Home - Products - PVD Coating Machine - Ultrasonic spray coating machine for thin film solar cell KS-USC500

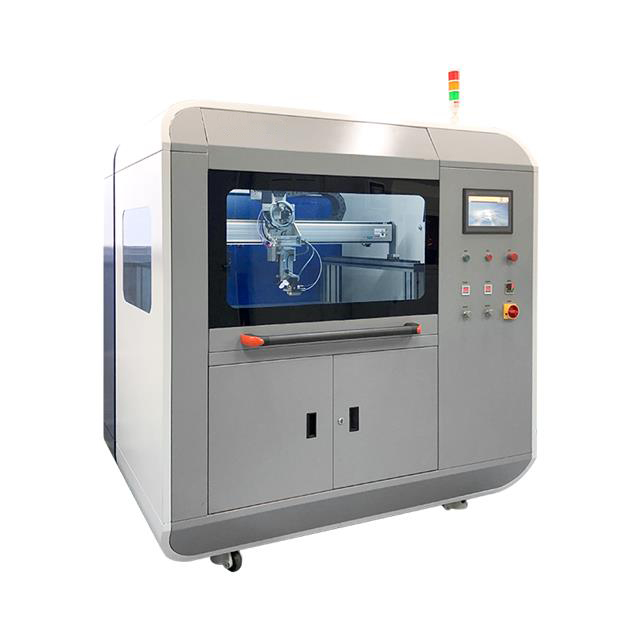

Ultrasonic spray coating system includes XYZ motion system, ultrasonic spray nozzle, ultrasonic generator,constant liquid delivery system and air control. It is suitable for nano thin film coating e.g. solar cell, fuel cell, glass coating etc..
Technical Parameters
Features :Ultrasonic spray coating system includes XYZ motion system, ultrasonic spray nozzle, ultrasonic generator,constant liquid delivery system and air control. It is suitable for nano thin film coating e.g. solar cell, fuel cell, glass coating etc..Air pressure control.Ultrasonic dispersion liquid delivery technology can provide nano particles dispersion during liquid devliery.(optional)
Application :Electronics: Sensors, PCB Fluxing, Display, Semiconductors etc.Industrial: Glass, Fabrics, etc. Medical: Medical Textile, Diagnostic Device etc.Energy: Fuel Cell, Solar Cell, etc.
Technical parameters:
| Precision spray coatings | High efficiency spray, the material usage ratio > 95%. |
| Maximum spray area | 500mm*500mm |
| Full digital ultrasonic generator | 4 CPUs provide high stable operation of nozzle. |
| Display method | Touchscreen control. |
| spray width | from1mm to 100mm, and flow rate 0.001ml/min-50ml/min. |
| High temperature heating plate | max. 500°C for spray pyrolysis purpose |
| Heating plate with vacuum | for thin film substrate e.g. fuel cell membrane.(optional) |
