Precise control of the atomization flow, low flow continuous spray, spray shape is easy to control and form (add spray robot arm), suitable for industrial application. By combining, the amount of atomization can meet any user's requirements.
Technical Parameters
Features:
◆ High stability
Made of high-performance titanium alloy and stainless steel, it is adaptable, corrosion-resistant, pressure-free, noise-free, no-nozzle wear and blockage, and high uniformity of atomized particles.
◆ Save materials and protect the environment
The spray impact is small, does not cause liquid splashing, and can reduce raw material waste and air pollution caused by back-spraying. The paint utilization rate of ultrasonic spraying is more than 4 times that of traditional two-fluid spraying.
◆ High controllability
Precise control of the atomization flow, low flow continuous spray, spray shape is easy to control and form (add spray robot arm), suitable for industrial application. By combining, the amount of atomization can meet any user's requirements.
◆ Easy to maintain
The liquid is transmitted to the spray head through its own gravity or low pressure pump and realizes continuous or intermittent atomization, no blockage, no wear, no noise, no pressure, no moving parts, no cooling water required when atomizing, small energy consumption, simple equipment, low failure rate, ultrasonic nozzle with self-cleaning function, daily maintenance-free.
◆ Widely used
Ultrasonic spraying equipment is mainly used in fuel cells, thin-film photovoltaic cells, thin-film solar coatings, perovskite solar cells, solar cells, graphene coatings, silicon photovoltaic cells, glass coatings, electronic circuits and other industries. The nozzle can be applied to a variety of solutions, and even sewage, chemical liquids, and low-viscosity oil mucus can be atomized and sprayed.
Technical Parameters:

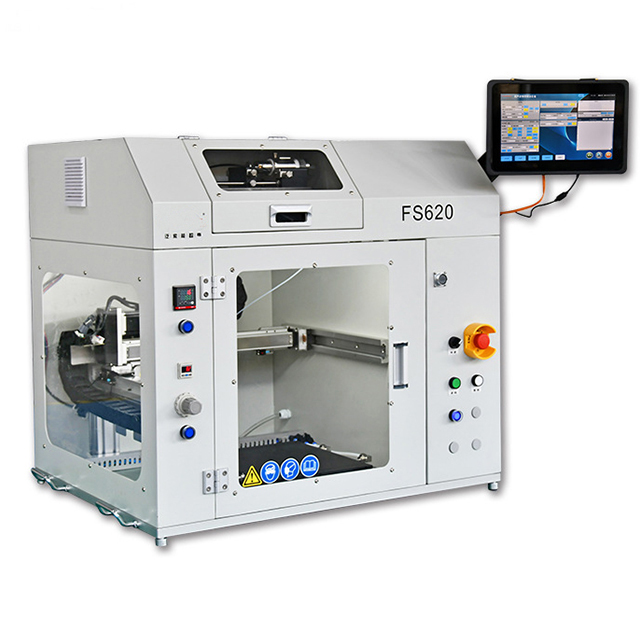

| product Model | KS-USP-FS620 |
| Sprinkler operating frequency | 20-200KHz |
| Sprinkler power | 10-100W |
| Continuous spray volume max | 20-1200ml/h/pcs, scalable |
| Effective spray width | 2-260mm/pcs, expandable |
| Spray uniformity | <5% |
| Solution conversion rate | ≥95% |
| Dry film thickness | 20nm-100μm |
| Solution viscosity | ≤50cps |
| Temperature range | 1-60℃ |
| Atomized particles (median) | 10-45 μm (distilled water), depends on nozzle frequency |
| Diversion air pressure max | ≤0.15MPA |
| Input voltage | 220V±10%/50-60Hz |
| Movement mode | XYZ three-axis, independently programmable, 300*300*100mm |
| Control mode | PLC control, touch screen + buttons |
| Control the content | Ultrasonic spraying, liquid supply, heating, ultrasonic dispersion and other systems |
| Liquid supply mode | Precision syringe pump |
| Ultrasonic dispersion system (optional) | 50 ml, 40K, biograde |
| Ultrasonic dispersion system power rating | 200W |
| Heating and drying system (optional) | Yes, up to 200°C |
| Vacuum adsorption (optional) | With, multi-zone vacuum adsorption, equipped with vacuum generator |
| Ultrasonic generator | Full CNC generator, fully intelligent frequency, frequency chasing |
| Exhaust air outlet | have |
| Total weight | Approximately 180 kg |
| Accessory material | Sheet metal spraying |
| Sprinkler core material | Piezoelectric ceramics, titanium alloys |
