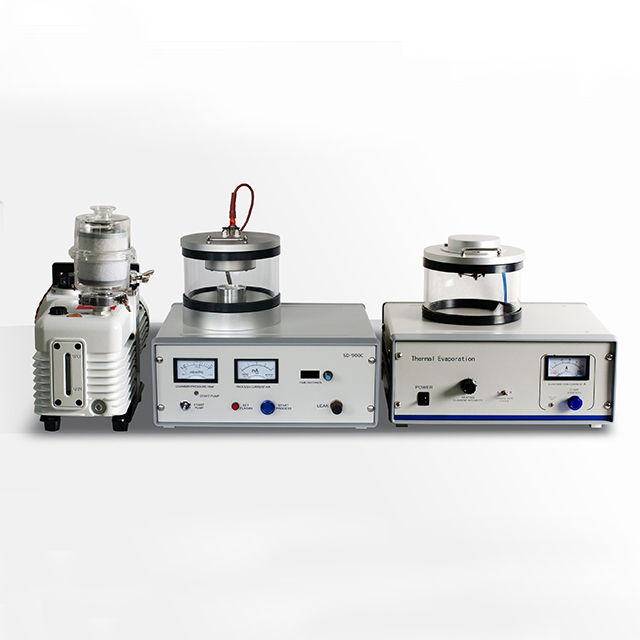

Magnetron Ion Sputtering Unit &Thermal evaporation coater is ideal and designed for lab SEM sample preparation. KS-SD-900C Model (Magnetron Ion Sputtering Unit) is widely used to coat non-conductive or heat-sensitive SEM samples with Au for better imaging. It is also excellent for surface treatment and avoids damage to the substrate sample.
Technical Parameters
Introduction
Magnetron Ion Sputtering Unit &Thermal evaporation coater is ideal and designed for lab SEM sample preparation. KS-SD-900C Model (Magnetron Ion Sputtering Unit) is widely used to coat non-conductive or heat-sensitive SEM samples with Au for better imaging. It is also excellent for surface treatment and avoids damage to the substrate sample.
KS-SD-900C Model (Thermal Evaporation Carbon Unit) carbon coater applies a thin conductive carbon film on a sample surface. Applying this coating to a non-conductive sample is an effective preparation technique for diminishing charge-up electron artifacts for analysis in a SEM.
Technical Parameters:
| Model | KS-SD-900C |
| Vacuum pump set | (Oil required) rotary vacuum pump |
| Rotary pumping speed | 50 Hz : 8 m³/h (2.2 L/s)/ 60 Hz : 9.6m³/h (2.6 L/s) |
| Vacuum limit | 2Pa |
| Max sputtering current | 100mA |
| Max evaporationcurrent | 100A |
| Working pressure | 20Pa -8 Pa |
| Vacuuming time | <5 Min(2 Pa) |
| Vacuum measure | Measuring range from atmosphere to 2*10-2mbar |
| Gas control | Gas flow controller |
| Chamber size | Φ150*120mm (height) scratch resistant quartz glass |
| Magnetron target source | Target size φ 50*0.1mm(Au)/ target source: Au,Ag,Pt |
| Evaporation target source | Target material:carbon rope /target source:carbon rope |
| Operation method | Instruction Manual |
| (2 units)Weight/size | 55kg/360mm length x 300mm wide x 380mm high |
| Power supply | AC 110V 60Hz or AC 220V 50Hz |
| Power consumption | <2000W |
| Cooling method | Air cooling(Evaporation)+water cooling (sputtering ) |
| Warranty | One year limited warranty with lifetime product support |
