It is mainly used to realize the oxygen-free and water-free vacuum sealing preservation of samples or high-temperature solid-phase synthesis.
Technical Parameters
It is mainly used to realize the oxygen-free and water-free vacuum sealing preservation of samples or high-temperature solid-phase synthesis. The samples are first put into the quartz tube, then the quartz tube is evacuated, and finally the quartz tube is melted and sealed by a hydrogen-oxygen machine or a laser, so as to High-temperature solid-phase synthesis or low-temperature cryopreservation.

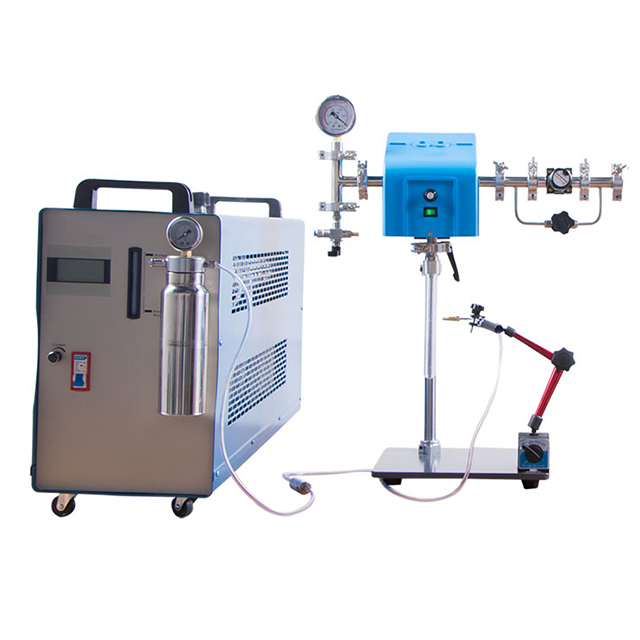

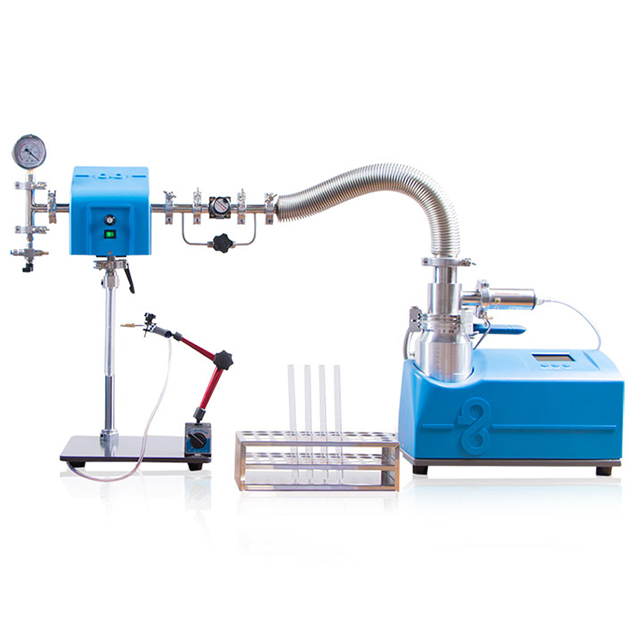

this vacuum sealing machine + system is mainly used to realize the oxygen-free and water-free vacuum sealing preservation of samples and high-temperature solid-phase synthesis. The whole system consists of vacuum sealing machine, hydrogen-oxygen machine, molecular pump unit, quartz tube, pipe joint The standardization and customization of the quartz tube and the quartz column ensure that they are precisely matched with the specially designed pipe joints, thereby further improving the sealing performance of the quartz tube packaging and achieving a higher standard of vacuum sealing.
Technical parameters:
| Vacuum tube sealing machine | |
| Model | KS-MFT-VS1002 |
| Number of sealed tubes: 1 | Leak rate of the whole machine: 2X10-12 Pa.m³/s |
| Rotation speed: 0-30rpm adjustable | Ultimate vacuum: 10-6Pa |
| Outer diameter of sealable quartz tube: Φ 45, Φ 20, Φ 15, Φ 13mm or others | Working vacuum: 0.1M Pa~10-5Pa |
| Wall thickness of sealable quartz tube: up to 2mm (depending on the size of the torch flame) | Vacuum pipeline interface: KF16 |
| Sealable quartz tube length: standard 200mm or other | device size (LxWxH): 280x240x570mm |
| Inflatable interface size: 6mm | Supply voltage: 220V, 50Hz |
| Hydrogen and oxygen machine | |
| Flame temperature: up to 2800℃ | H600 device size (LxWxH): 1040x320x540mm |
| Gas production: standard 600L/H | Supply voltage: 220V, 50Hz |
| Working pressure: 0.13-0.15Mpa | |
| Molecular pump unit | |
| Molecular Pump: Leybold Turbovac 901 | Backing vacuum pump (oil type VRI-2): 2m³/h |
| Pumping rate: 90L/S | molecular pump unit size (length x width x height): 380 x308 x375mm |
| Ultimate vacuum: 4x10-8 mbar (4x10-6 Pa) | Supply voltage: 220V, 50Hz |
