Hydrogen atmosphere furnace is specially designed for sintering or annealing materials in hydrogen or inert gas environment.
This electric furnace is suitable for materials (such as fluorescent materials, titanium alloys, etc.) that need to be sintered in the environment of inert gas or reducing atmosphere.
Technical Parameters
Product Description:

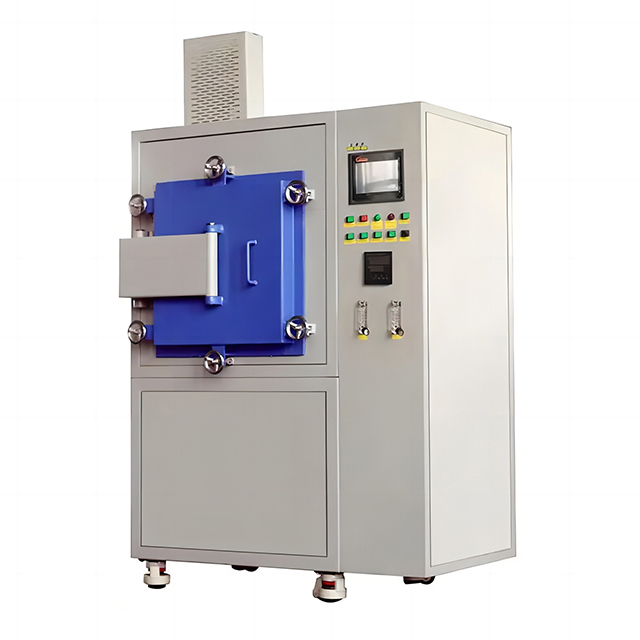

Hydrogen atmosphere furnace is specially designed for sintering or annealing materials in hydrogen or inert gas environment. The highest temperature can reach to 1700℃. Alumina fiber is used as furnace chamber material and Mo wire is used as heating element. Cooling water pipe is embedded in the sealing plate at the top of the furnace body to ensure the sealing performance during working. This electric furnace is suitable for materials (such as fluorescent materials, titanium alloys, etc.) that need to be sintered in the environment of inert gas or reducing atmosphere.
Technical Parameters:
| Model | KS-MF-A1600H2 |
| Max temperature | 1700C |
| Continuous working temperature | ≤1600C |
| Inner chamber size | 300*300*400mm or customized |
| Voltage | 380V |
| Power | 12KW |
| Heating rate | 0-20C/minutes |
| Thermocouple | B type |
| Heating element | High purity Molybdenum Wire |
| Float flow meter | N2: 0-3.5L/min; H2 :0-3.5L/min |
| Pressure | -0.1Mpa~+0.2Mpa |
