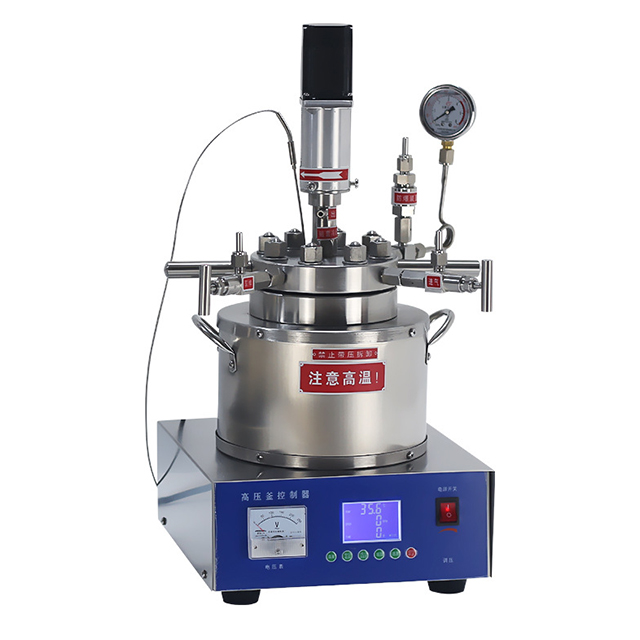

The laboratory magnetic stirring reactor is a stirring reaction device for chemical reactions of gas-liquid, liquid-liquid, liquid-solid or gas-liquid-solid three-phase chemical materials. It can fully stir various chemical materials under higher pressure, vacuum and temperature to enhance mass transfer and heat transfer processes.
Technical Parameters
The laboratory magnetic stirring reactor is a stirring reaction device for chemical reactions of gas-liquid, liquid-liquid, liquid-solid or gas-liquid-solid three-phase chemical materials. It can fully stir various chemical materials under higher pressure, vacuum and temperature to enhance mass transfer and heat transfer processes.
Technical Parameters:
| Product name | High pressure magnetic stirring reactor |
| Product model | KS-HPR-0.5L |
| Volume | 0.5L (other volume can be customized) |
| Material | 304/316L stainless steel |
| Design pressure | 22MPa |
| Design temperature | 350℃ |
| Stirring speed | 20-1500 rpm |
| Stirring form | magnetic coupling driven stirring, stepless speed regulation |
| Heating method | electric heating |
| Heating power | 220v 1.2KW |
| Motor power | 70W |
| Temperature control accuracy | ±1℃ |
