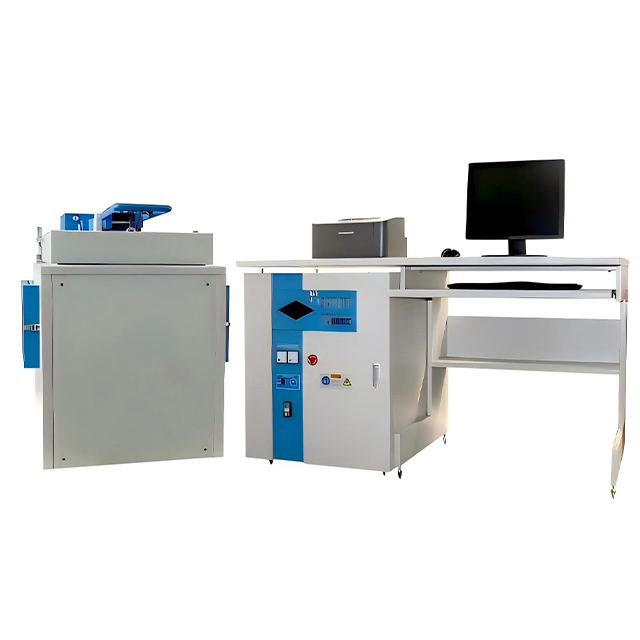

Cross-wire thermal conductivity meter for refractory material

This instrument is used to measure the thermal conductivity and heat capacity of various refractory materials.

Control method: It uses a computer for full automatic control, equipped with a high-precision acquisition board and special software to achieve temperature control and accurate measurement of thermal conductivity.


Technical Parameters

This instrument is used to measure the thermal conductivity and heat capacity of various refractory materials.

Control method: It uses a computer for full automatic control, equipped with a high-precision acquisition board and special software to achieve temperature control and accurate measurement of thermal conductivity. The heating rate can be set arbitrarily within a certain range. The interface is friendly, and the temperature time, hot wire temperature time curve, and display and monitor relevant parameters are displayed in real time. The original data can be converted into EXCEL format, and the test report with thermal conductivity curve can be retrieved and printed at any time.

Technical Parameters:

Model KS-CWTC-24
Operating   Temperature (°C) 0–1250
Maximum   Temperature (°C) 1350
Heating Rate   (°C/min) 0–10
Temperature   Control Accuracy (°C) ±1
Measurement Range   (W/(m·K)) <25
Furnace Chamber   Size (mm) 350 × 250 × 280
Number of Samples   (sets) 1
Sample Size (mm) 230 × 114 × 64
Main Unit   Dimensions (mm) 1200 × 900 × 1000
Control Cabinet   Dimensions (mm) 1400 × 650 × 800
Power (kW) 20
Power supply380V, 63A,   50Hz–60Hz
Weight600Kg
