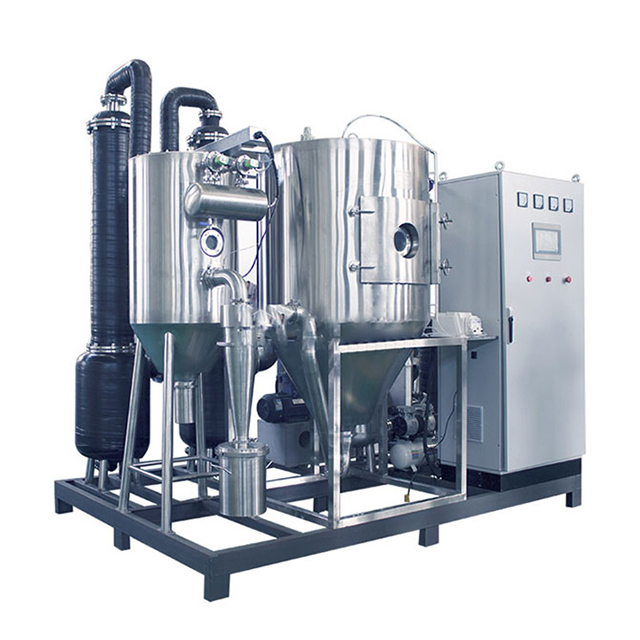

Home - Products - Muffle Furnace and Tube Furnace - Closed loop high temperature spray dryer for preparation of organic medicine
KS-MFT-BL cloosed loop spray dryer is suitable for Non oxidation ceramics, superhard alloy, high efficiency battery materials;Seasoning, healthy food;Medicine, vitamin, organic medicine;Synthetic resin, wax, etc.
Technical Parameters
Features:
Prevent oxidation, avoid danger and improve quality;
Easy to realize aseptic and dust-free.
Recover the solvent in the feed solution.
Improve the preservation of aromatic components.
Drying or cooling granulation of combustible material liquid.
Dry the material with high heat sensitivity.
Low pollution and no pollution.
Save deodorization device.
Dry at low temperature below 100 ℃.
Technical parameters:
| Closed loop high temperature spray dryer | KS-MFT-BL-G1 | KS-MFT-BL-G3 | KS-MFT-BL-G5 |
| NMP evaporative capacity | 0.8Kg/h | 3Kg/h | 5Kg/h |
| Minimum feed volume | 50ml | 80ml | 100ml |
| Atomizing structure | new atomization system | ||
| Maximum air inlet temp | 300℃ | ||
| Drying chamber diameter | 300mm | 800mm | 800mm |
| Drying tower height | 600mm | 1200mm | 1500mm |
| Explosion-proof sheet Diameter | 65mm | 65mm | 108mm |
| Heater capacity | 4Kw | 8Kw | 18Kw |
| Induced draft fan[power(kw),air volume] | [1.5,250] m³/h | [2.2,300] m³/h | [2.2,300] m³/h |
| Compressor[power(kw),air volume] | [0.58,108] L/min | [0.58,108] L/min | [0.58,108] L/min |
| Chiller | 50-60Hz(Built-in low-temp cooling circulation pump) | ||
| Atomizing nozzle (diamond coating or not) | SUS304(standard) | ||
| Warranty | 1year(Standard, above need to charge certain maintenance fee) | ||
| Power (installed capacity) | 10Kw | 16Kw | 35Kw |
| Pulse bag filter | PTFE coating | ||
| 2 | 4 | 8 | |
| Dimensions(mm)(L×W×H) | 1400×1000×1600 | 1800×1200×1800 | 2100×1200×1800 |
| Installation weight | 200Kg | 450Kg | 1000Kg |
| Power | 380V/-3 (Relevant voltage can be customized according to different national standards) | ||
