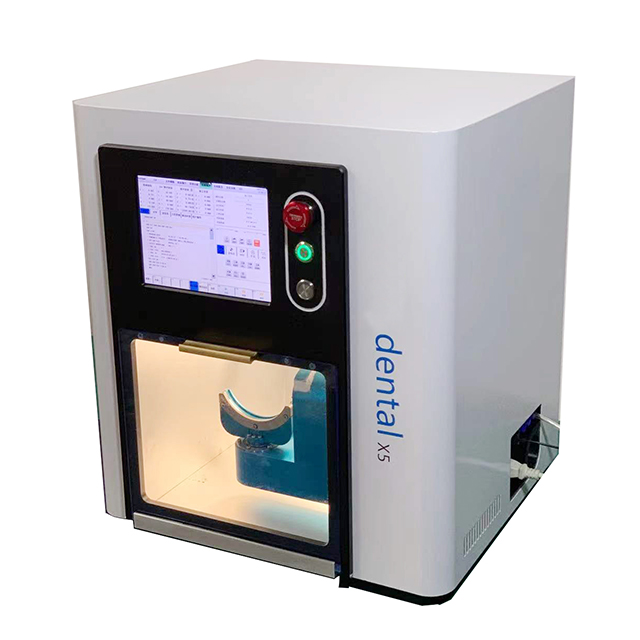

5 axis dental engraving machine with high accuracy

Five-axis milling center equipment, clamping zirconia porcelain, fast
and easy,it is suitable for dental engraving


Technical Parameters

Product Features:

1.CAM automatic programming, data management;
2. Automatic recognition of the knife path to shorten the runaway time to
improve production efficiency;
3. High-precision surface quality
4. Easy to understand and does not require professional CAD / CAM
operators;
5. Fast and easy, automatic tool change with three positions;
6. Five-axis milling center equipment, clamping zirconia porcelain, fast
and easy;
7. Automated tooth preparation and shaping with high-speed 3D scanner
CAD software;

Technical Parameters:

ModelKS-DM5
Axis5 axis
Milling waydry
Max speed of spindle60000 R/min
Total power2.2KW
Remote MaintenanceRemote A/S
Compressed Air7 bar, 50L/min
Power supply220V, 50/60Hz
Cooling methodWind cooling
Milled materialZIR, PMMA, WAX, PEEK
Processing material size98mm*10mm~98mm*25mm
Dimension460*420*500mm
Weight60Kg
