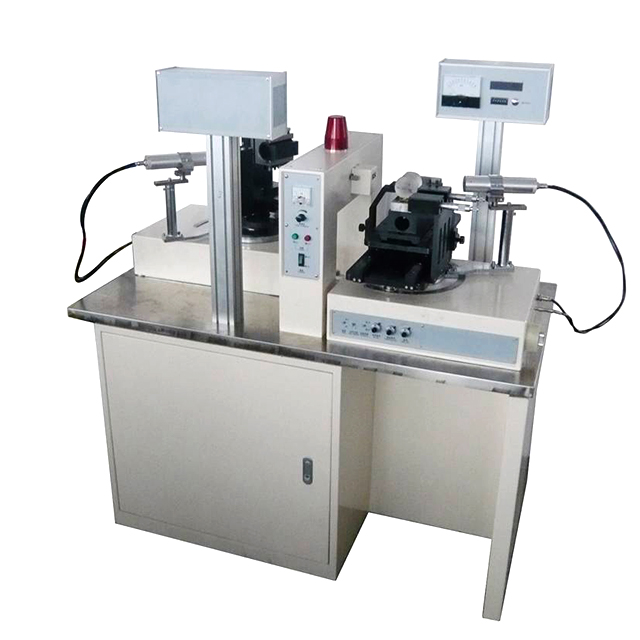

The DX-Series X-ray Single Crystal Orientation Unit is a photo/mechatronic precision instrument, adopting the x-ray diffraction to test the crystal-plane angle in precision to orient and measure the mono-crystal. It is widely applied in the research and manufacture industry of mono-crystal material and device.
Technical Parameters
Product description:
The DX-Series X-ray Single Crystal Orientation Unit is a photo/mechatronic precision instrument, adopting the x-ray diffraction to test the crystal-plane angle in precision to orient and measure the mono-crystal. It is widely applied in the research and manufacture industry of mono-crystal material and device.
Technical Parameters:
| Model | KS-DX-5LS |
| Input power supply | single phase, AC 220V, 50 Hz, 0.25Kw |
| X-ray tube | Cu target, air-cooling with fan, anode grounded. |
| Max. tube V & A | 30 KV, 5mA (successively tunable) |
| Receiver | Detector and Geiger tube |
| Time constant | Two shifts with fast (1) and slow (2) |
| Measuring angle range | 2θ = -5~120°, θ = -5~60°. |
| The reading min | 1″ |
| Angle adjustment | Digital display could be preset at any angle. |
| Main shutter | Auto opening |
| Display panel | Display of angle, x-ray intensity meter. |
| Total accuracy | Single diffraction is ±30″, double-crystal one is ±15″(measured with standard quartz). |
