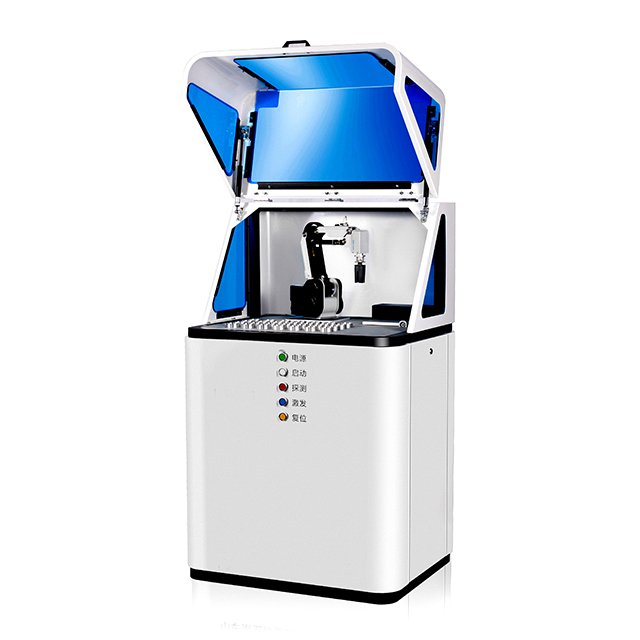

X-ray fluorescence spectrometer for refractory materials KS-FS-6

X-ray fluorescence spectrometer is suitable for non-destructive testing and analysis of elements in industries such as metals, cement, ores, slag, refractory materials, coating detection, titanium dioxide, archaeological research, gold and silver.The chemical element analysis range is F-U.


Technical Parameters

Technical Parameters:

Product modelKS-FS-6 Fluorescence Spectrometer
Chemical element rangeSimultaneous analysis of   9# fluorine (F)-92# uranium (U) in the periodic table
Content range PPM-100%
Sample typespowder, solid, pressed   tablet, fused tablet, liquid
Digital pulse   multi-channel analyzer2048-channel output,   automatic adjustment of magnification, light element intensity can be   increased by more than 35%. Greatly improve the efficiency of element   detection, facilitate instrument debugging, and further provide instrument   accuracy and stability.
Primary filter 6-10 position automatic filter; multiple   composite materials; Collimators and filters can be automatically switched   for different samples, suitable for wide range element analysis
X-ray source high stability and high precision 80W high   power high voltage generator, ensuring lower detection limit and faster   analysis speed, optimized power automatic adjustment program, can quickly   adjust power, detect X-ray tube status, and extend service life.
High-efficiency ultra-thin   window X-ray tube50W Max X-ray tube,   automatic aging correction of X-ray tubeRh, Ag, Pd anode targets;   (optional)Voltage is 0-50KV contact   adjustable
Sampling system29 sample cups   (upgradeable to 31)Can accommodate 40mm   diameter pressed pieces, melts and liquid cupsCan realize all-weather   unattended automatic analysis of samplesSet priority measurement   position and insert emergency samples at any time
Vacuum systemIntelligent vacuum system,   shielding the influence of air and expanding the test range.
Sample controlsample rotation can   eliminate sample unevenness
Power supply 220V 50Hz AC (host part)
Working environment temperature range 5-30℃ Humidity ≤80%
DimensionsLength x width x height   800mmx700mmx1400mm
Weight 150kg (host part)
Global online supportWith the help of 5G IoT   remote diagnosis, fast, safe and reliable remote services are provided free   of charge, reducing user after-sales costs.
