This instrument adopts 16-bit microprocessor core control circuit, no
gear drive, RTD temperature probe real-time monitoring and measurement of
viscosity temperature,
Equipped with RTD temperature probe and RS232C standard output interface, the data can be saved, compared and recorded after being connected to a PC
Technical Parameters
Product Description:

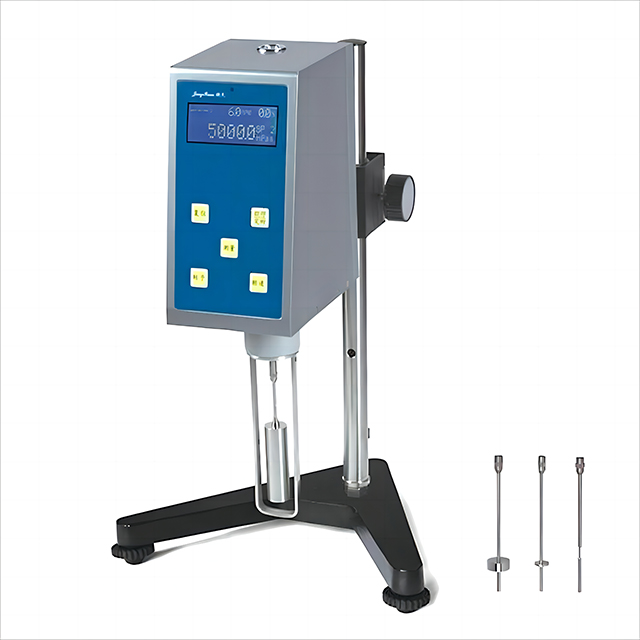

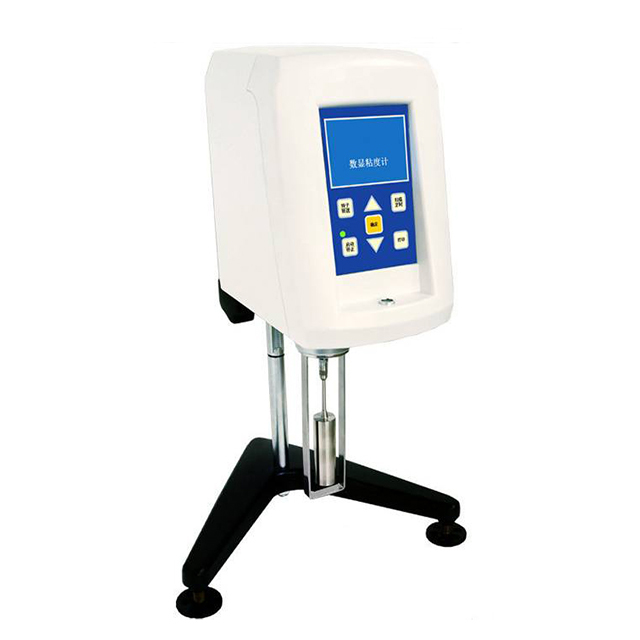

This instrument adopts 16-bit
microprocessor core control circuit, no gear drive, RTD temperature probe
real-time monitoring and measurement of viscosity temperature, blue screen LCD
digital display directly displays viscosity, speed, percentage torque, rotor
number and the current speed of the selected rotor The maximum viscosity value
that can be measured below. The button is eye-catching, the speed is stable,
and the measurement is accurate. Equipped with RTD temperature probe and RS232C
standard output interface, the data can be saved, compared and recorded after
being connected to a PC (optional fully automatic data acquisition function
through the PC interface).
Technical Parameters:
| Product model | KS-NDJ-5S digital rotational viscosity tester(viscometer) |
| measuring range | 1～100、000 mPa·s (cP) |
| spin velocity | 6,12,30,60 (RPM) |
| Number of rotors | Random rotor type 1,2,3,4 (rotor number 0 is optional) |
| certainty of measurement | ±1.0% |
| repeatability | 0.50% |
| source | Power adapter (220V 50 ± 1Hz, 15V 1.2A) |
| External type size and weight | Length, width and height: 280*105*258mm (excluding bracket), 1.5 Kg |
