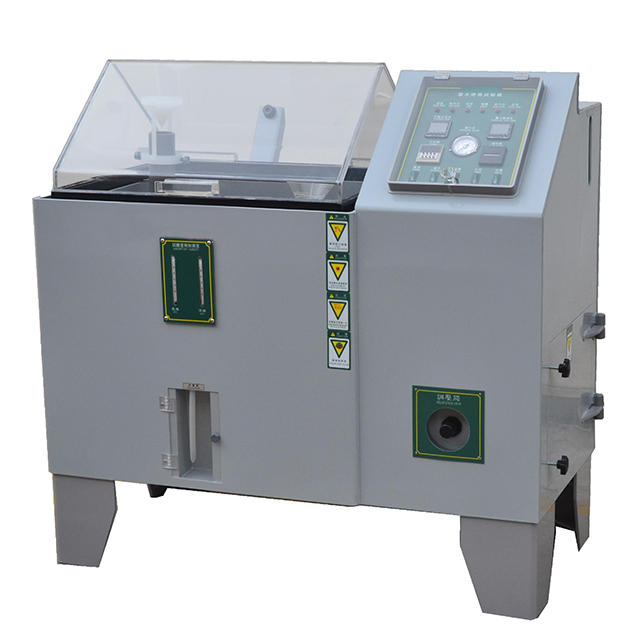

Home - Products - Measurement & Analyzer Instrument - Continuous salt spray test chamber machine KS-MAI-SST-120A
The salt spray test is to test the corrosion resistance of the products after electroplating, anode treatment, spraying, anti-rust oil and other anti-corrosion treatments on the surface of various materials.
Technical Parameters
The salt spray test is to test the corrosion resistance of the products after electroplating, anode treatment, spraying, anti-rust oil and other anti-corrosion treatments on the surface of various materials.
Technical Parameters:
model | SST-60A | SST-90A | SST-120A | SST-160A | SST-200A |
Inner chamber LxWxH(cm) | 60x45x40 | 90x60x50 | 120x80x50 | 160x100x50 | 200x120x60 |
Outer box size LxWxH(cm) | 107x60x118 | 141x88x128 | 190x110x140 | 230x130x140 | 270x150x150 |
Laboratory temperature | Salt water test method (NSS ACSS) 35℃±1℃/Corrosion resistance test method (CASS) 50℃±1℃ | ||||
Pressure barrel temperature | Salt water test method (NSS ACSS) 47℃±1℃/Corrosion resistance test method (CASS) 63℃±1℃ | ||||
Brine temperature | 35℃±1℃ 50℃±1℃ | ||||
Laboratory capacity | 108L | 270L | 480L | 800L | 1440L |
Salt water tank capacity | 15L | 25L | 40L | 40L | 40L |
Compressed air pressure | 1.00±0.01kgf/cm2 | ||||
Spray volume | 1.0~2.0ml/80cm2/h (collect at least 16 hours, take the average) | ||||
Relative humidity in laboratory | 85% or more | ||||
PH | 6.5~7.2 3.0~3.2 | ||||
Spray method | Continuous spray | ||||
power supply | AC220V1Φ10A | AC220V1Φ15A | AC220V1Φ20A | AC220V1Φ20A | AC220V1Φ30A |
