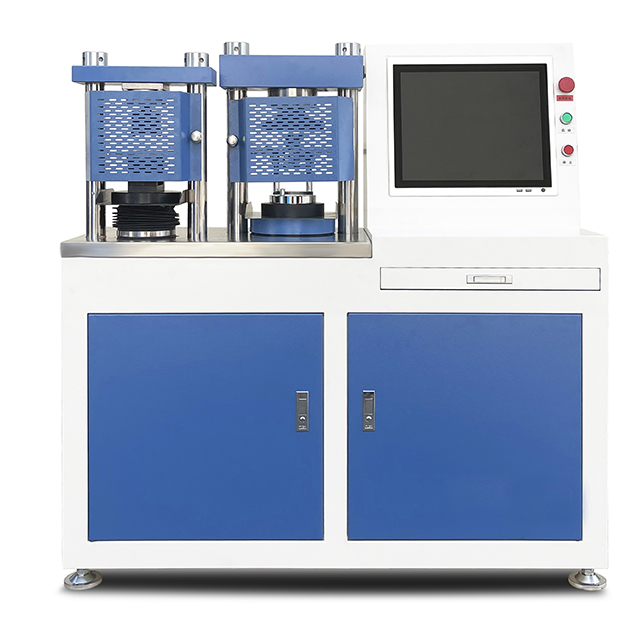

Compression and flexure testing machine KS-CFS-10-300 for refractory materials

Test the room temperature flexural strength and compressive strength of various refractory materials and casting materials. Two independent stations can realize constant stress rate loading for compression and flexural respectively.

Technical Parameters

Technical parameters:

Model KS-CFS-10-300
Maximum Test Force (KN) 300
Measuring Range (KN) 0~300
Testing Machine Accuracy ±1% F.S
Upper and Lower Pressure   Plate Diameter (mm) Φ180 (30T upper) / Φ180 (30T lower) / Φ180 (1T lower)
Maximum Net Distance   Between Upper and Lower Pressure Rollers (mm) 150 (30T) / 40 (1T)
Maximum Piston Stroke (mm) 80
Motor Power (kW) 0.75
Overall Dimensions (mm)   (L×W×H) 1180×430×1280
Net Weight (kg) Approx. 400
