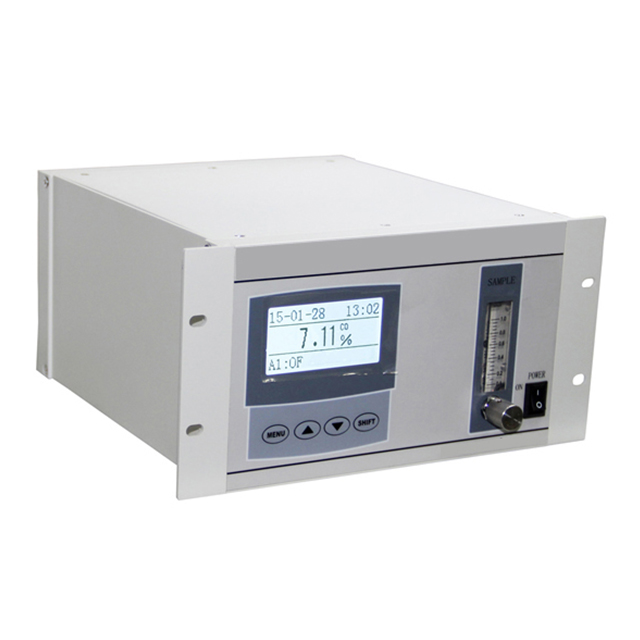

Home - Products - Measurement & Analyzer Instrument - Carbon monoxide infrared analyzer KS-MAI-LC300
The analyzer comes with a standard RS232 (default) or RS485 communication port, which can realize two-way communication with the computer
Technical Parameters
Instrument features:
Friendly man-machine dialogue menu, intuitive and convenient operation;
Using fuel cell principle or infrared principle sensor, it has the characteristics of fast response speed, high precision, minimal drift, and long calibration period;
It has good selectivity to the measured gas;
Fuel cell or infrared principle optional;
High-precision temperature automatic compensation system to eliminate the influence of ambient temperature;
The analyzer comes with a standard RS232 (default) or RS485 communication port, which can realize two-way communication with the computer.
Technical Parameters:
| Model | KS-MAI-LC300 |
| Test principle | fuel cell/infrared principle |
| Display mode | 128×64 dot matrix LCD |
| Measuring range | 0 ~ 1000ppm/10.00% CO |
| Measurement accuracy | ≤±1.2%FS |
| Sample gas flow | 400 ~ 800ml/min |
| Service life | > 24 months (under normal use conditions) |
| Response time | T90≤60S |
| Analog output | 4-20mA.DC (non-isolated output, load resistance less than 500 ohms) |
| 0-10V.DC (non-isolated output, load resistance greater than 10K ohms | |
| 1 channel programmable dry contact type passive alarm output, large capacity 220VAC/2A | |
| Communication method | RS232 (default) or RS485 |
| Sample gas pressure | 0.05Mpa≤inlet gauge pressure≤0.35Mpa, stabilized atmosphere |
| Repeatability | ≤±1% |
| Error | <±1.2%FS |
| Power supply | AC170 ~ 264V 50/60Hz |
| Ambient temperature | -10℃ ~ +40℃ |
| Ambient humidity | <80%RH |
| Sampling method | pass-through |
| Sample gas temperature | 0 ~ 50℃ |
| Size | 133mm×266mm×302mm (H×W×D) |
| Hole size | 135mm×227mm (H×W) |
| Pneumatic interface | NPT 1/8 female thread |
| Installation method | embedded |
