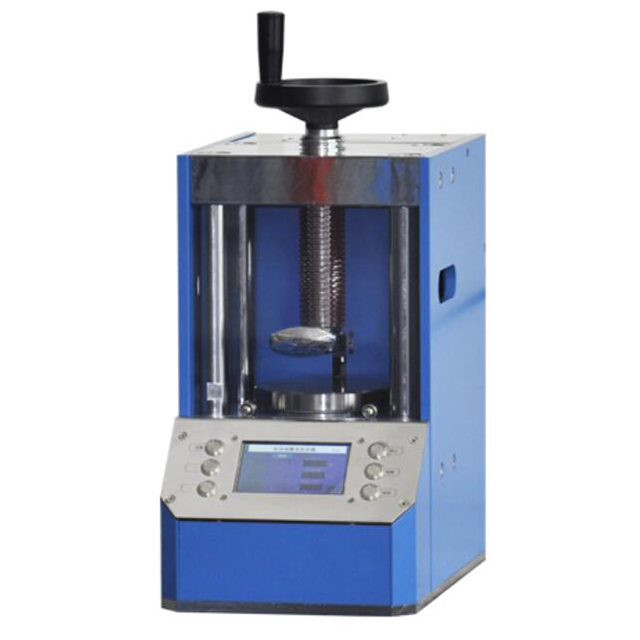

Our tablet presses are small in size, large in press and high in pressure control. They are now used in various industries such as scientific research, teaching, testing, pharmaceutical, catalysis and chemical industry.
Technical Parameters
Our tablet presses are small in size, large in press and high in pressure control. They are now used in various industries such as scientific research, teaching, testing, pharmaceutical, catalysis and chemical industry. In addition, this product can also be used with Fourier infrared spectrometer, fluorescence spectrometer and other test instruments for sample preparation, which can replace similar imported products.
Technical parameters:
| Model | KS-HP-A40S |
| Pressure range | 0-40.0 tons |
| Pressurization process | Program pressurization-Program pressure holding-Timing pressure relief |
| Pressure holding time | 0-999 seconds |
| Pressure conversion | The program automatically converts the pressure on the mold |
| Liquid crystal display | 4.3 inch LCD screen |
| Equipment protection | Steel plate protection with plexiglass door |
| Limit switch | Automatic pressure relief when cylinder rises to limit height |
| Oil cylinder stroke | 50mm（T） |
| Space size | 175×180mm（M×N） |
| Dimensions | 280×460×550mm（L×M×H） |
| Equipment power supply | 220V（50Hz/60Hz） |
| Equipment weight | 150Kg |
