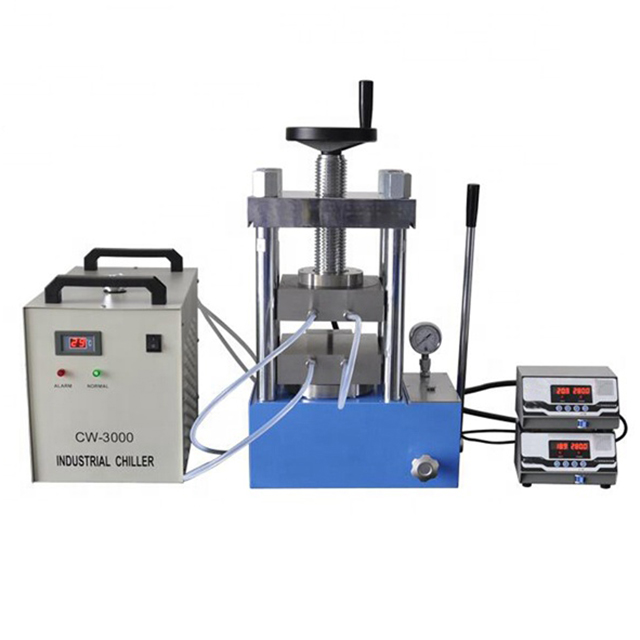

60 ton Laboratory Hydraulic Press With Heating Plate

The 60T Laboratory Heating Pressing Machine is a compact heating press with double heating plate for laboratory using.The maximum heating temperature can upto 300 degree.Heating palte is 180*180mm


Technical Parameters

The 60T Laboratory Heating Pressing Machine is a compact heating press with double heating plate for laboratory using.The maximum heating temperature can upto 300 degree.Heating palte is 180*180mm

Technical Parameters:

Model No.KS-PCH-600D
Press range0-25T(0-34MPa)
Piston diameterΦ 150 (Chrome plated cylinders)
Stand column4 pieces
Heating MethodDouble Heating Plate with water cooling circle layer
Temperature rangeRm-300℃
Temperature accuracy0.1℃
Heating rate5~10℃/min
Maximum piston route50mm
Working space180*180*260mm
Pressure stability≤1MPa/10min
Working voltageAC220/500W (Heating controller)
Pressure gaugePointer pressure
Outer dimension420*280*550mm
Gross weight150kg
StructureMain board, oil tank, piston, all in one structure
Packed dimension650*750*800mm
Gross weight200kg
