500ºC Vacuum Heat
Press KS-VHP-40T is an electric vacuum flat-bed vacuum heat press, which is
specially used for wafer welding and film transfer.
Technical Parameters
Product Description:

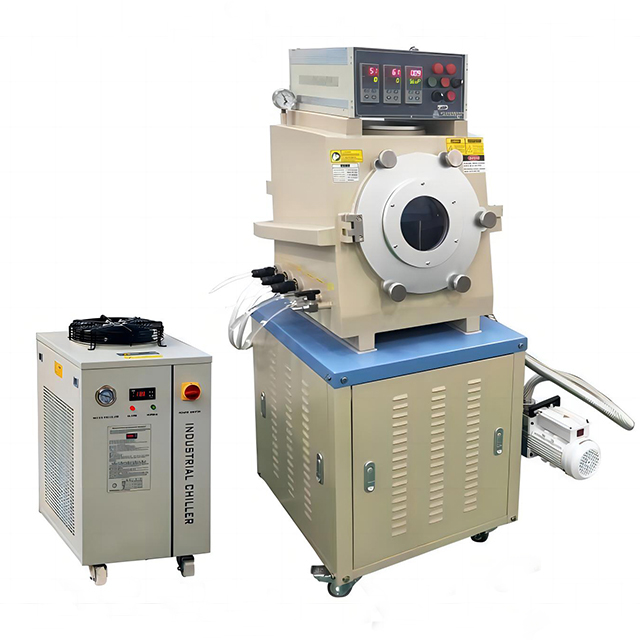

500ºC Vacuum Heat Press KS-VHP-40T
is an electric vacuum flat-bed vacuum heat press, which is specially used for
wafer welding and film transfer. It can handle a maximum sample size of 400mm×400mm
and a maximum working temperature of 500°C. The maximum pressure that can be
applied to the sample at this temperature is 40T.
Product Features:
1. There is a 1000W heating tube
embedded in the middle of the heating platform, which can achieve rapid heating
effect; the top of the heating platform is equipped with a water cooling tube
(when the working temperature is higher than 200 ℃, please inject
cooling water (>15L/min)) to achieve rapid heating. cooling effect.
2. Two
precision temperature controllers are used to independently control two heating
platforms, and 30 heating and cooling programs can be set, and PID mode is used
for temperature adjustment, with overheating and burnout protection functions.
3. Using
temperature control software and PC interface, the temperature program and
temperature curve can be imported into the computer.
4. The
digital pressure display is installed outside the vacuum chamber, and its
pressure can be set. When the pressure reaches the set value, the motor will
stop automatically.
5. Both the
hydraulic device and the heating table are placed in the vacuum chamber, and
the chamber is made of 304 stainless steel and welded with reinforcing ribs (to
prevent the chamber from deforming under vacuum).
6. There is
an observation window at the front end of the vacuum chamber.
7. A
high-sensitivity vacuum gauge is installed on the vacuum chamber to measure the
vacuum inside.
Technical Parameters:
| Product Model | KS-VHP-40T hot press machine |
| Voltage and Power | AC 208-240 V, 50/60 Hz, Single Phase, 6500 W |
| Heating Plantens Area | 400 x 400 mm (~16 x16") |
| Max. Opening of Two Plantens | 40 mm |
| Chamber Size & Capacity | 700 L x650 W x 550H (mm) ~250 liter |
| Max. Pressing Force on Heated Platen | 30 Metric Tons at 500°C 40 Metric Tons at RT |
| Dimensions | 900 (L) x 700(W) x 1,300 (H),mm |
| Vacuum Hot Press Structure | Two flat heating platens made of high-temperature alloy with max. the working temperature of 500ºCThe Heating element is inserted into the center of the heating plates for fast heatingTwo precision temperature controllers which control two heating plates separately with 30 programmable segmentsWater cooling jackets are built on both the top & bottom of the heating plates for assisting cooling. Cooling water inlet and outlet are for 12mm O.D polyurethane tube. |
| Hydraulic Pump | Max. the travel distance of the bottom ram: 15 mmAutomatic max. pressure controlled via a digital pressure gauge.Pressure accuracy: +/-0.01 Mpa ( 0.1 kg/cm²)Water cooling (>16L/min) is required to cool the heating plates when the temperature is over 200 ºC. |
| Temperature control and Pressure Display | Two precision temperature controllers with 30 programmable segments control the heating plates separately with +/1°C accuracy. The temperature controllers have PID auto-tune function, over-temperature protection, and thermal couple broken protectionMax. Temperature: 500°C with inert gas or vacuum with accuracy +/-1°CMax. Heating rate: 5°C/minA digital pressure meter ( controller ) is built in the control panel. You can set pressure at the desired value which can stop the electric hydraulic press automatically |
| Vacuum Chamber | Electric hydraulic press and heating plates are placed inside the vacuum chamberThe vacuum chamber is made of SS304400mm dia. vacuum-sealed hinged type door with the quartz glass window is installed for easy sample loading and observationSilicone O-ring can be used for all vacuum sealingsOne precision digital vacuum gauge ( 10E-4 torr ) is installed on the vacuum chamber |
