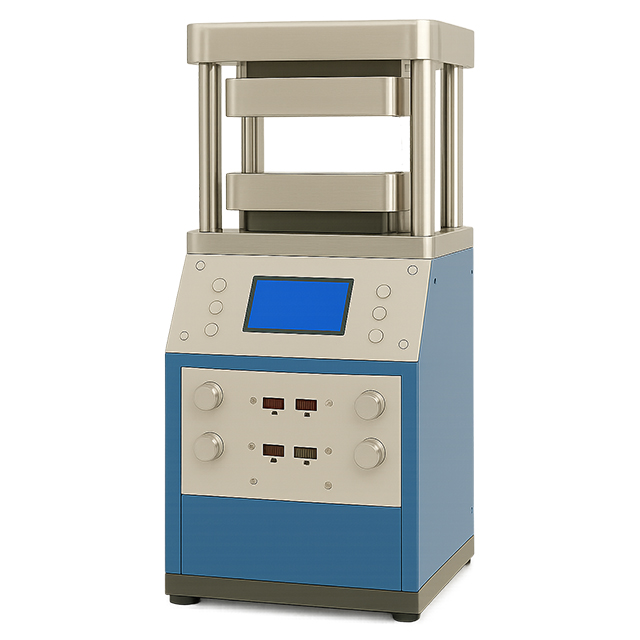

The Laboratory Automatic Hydraulic hot Pressing Machine has the advantages of small volume, high pressure and high precision of pressure control. It is applied to chemical industry, such as: scientific research, pharmaceutical, teaching, testing, catalysis and so on.
Technical Parameters
The Laboratory Automatic Hydraulic hot Pressing Machine has the advantages of small volume, high pressure and high precision of pressure control. It is applied to chemical industry, such as: scientific research, pharmaceutical, teaching, testing, catalysis and so on.In addition, this product can also be used with Fourier infrared spectrometer.Fluorescence spectrometer supporting sample preparation, can replace similar imported products.
Technical Parameters:
| Model | KS-PP-600DG |
| Pressure range | 0-25T |
| Pressurization process | Program pressurization-Program pressure holding-Timing pressure relief |
| Pressure holding time | 0-999.59 sec |
| Thermostat temperature control | Room temperature-600℃ |
| Die heating temperature | Room temperature-500℃ |
| Temperature control accuracy | 0.1℃ |
| Thermal insulation method | Imported thermal insulation board |
| Cooling method | Rapid cooling by water cooling [optional water chiller] |
| Die size | 180×180mm /200×200mm(M×N) |
| Dimensions | 280×420×620mm(L×W×H) |
| Power supply | 220V/3000W |
