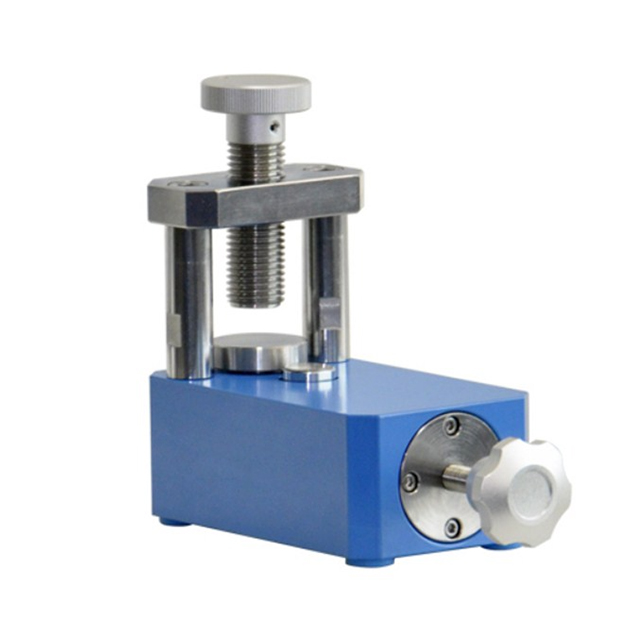

The 2T Manually Hydraulic Pressing Machine has the advantages of small volume, high pressure and high precision of pressure control. It is applied to chemical industry, such as: scientific research, pharmaceutical, teaching, testing, catalysis and so on.In addition, this product can also be used with Fourier infrared spectrometer
Technical Parameters
The 2T Manually Hydraulic Pressing Machine has the advantages of small volume, high pressure and high precision of pressure control. It is applied to chemical industry, such as: scientific research, pharmaceutical, teaching, testing, catalysis and so on.In addition, this product can also be used with Fourier infrared spectrometer.Fluorescence spectrometer supporting sample preparation, can replace similar imported products.
| Model No. | KS-PC-2T |
| Pressure Range | 0~2T (30MPa) |
| Piston diameter | Φ28mm |
| Press Structure | All in one structure |
| Pressure gauge | Pressure intensity display |
| Maximum piston distance | 5mm |
| Pressure stability | <1MPa/10min |
| Working table diameter | Φ45mm |
| Working space | 54*55mm |
| No. of columns | 2pcs |
| Dimension | 100*220*220mm |
| Gross Weight | 4.8kg |
