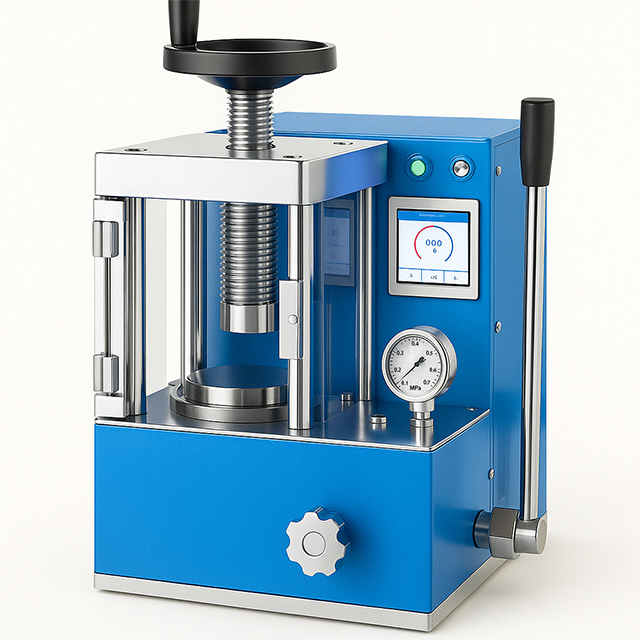

The 20 Ton Laboratory Hydraulic Pressing Machine has the advantages of small volume, high pressure and high precision of pressure control. It is applied to chemical industry, such as: scientific research, pharmaceutical, teaching, testing, catalysis and so on
Technical Parameters
Product Description:
The 20 Ton Laboratory Hydraulic Pressing Machine has the advantages of small volume, high pressure and high precision of pressure control. It is applied to chemical industry, such as: scientific research, pharmaceutical, teaching, testing, catalysis and so on.In addition, this product can also be used with Fourier infrared spectrometer.Fluorescence spectrometer supporting sample preparation, can replace similar imported products.
Technical Parameters:
| Model | KS-HP-20S |
| Pressure range | 0-20.0 Ton |
| Working process | Programmed pressure relief |
| Pressure holding time | 0-999 Sec |
| Intensity conversion | Automatic conversion of die pressure |
| LCD | 4.3” |
| Equipment protection | Steel plate equipped with plexiglass door |
| Lifting height of cylinder | 30mm (T) |
| Spatial size | 140×160mm (M×N) |
| Dimension | 230×390×420mm(L×W×H) |
| Power supply | 220V, 50HZ/60HZ |
| Net weight | 90kg |
