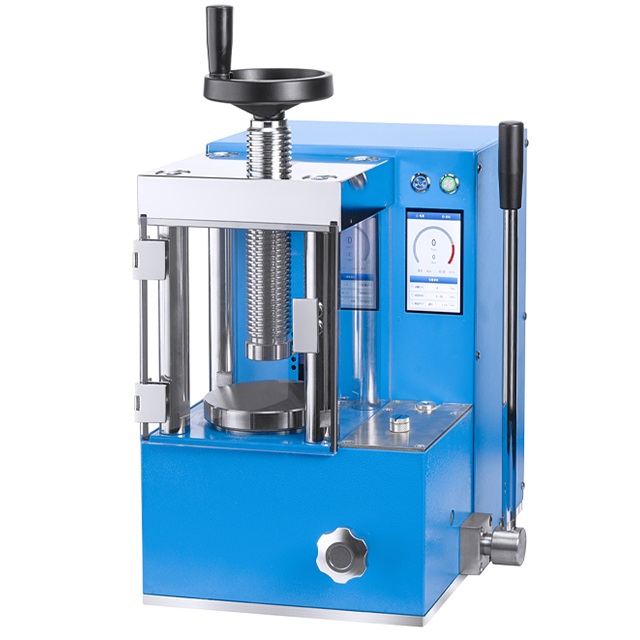

The 100T Laboratory Auto CIP(Cold Isostatic Pressing) hydraulic press is a compact cold isostatic pressing machine which design for laboratory battery researching with programmable contro system, user do not need pressing the machine manually, all the press power and press time will be controlled by Programmable.
Technical Parameters
The 100T Laboratory Auto CIP(Cold Isostatic Pressing) hydraulic press is a compact cold isostatic pressing machine which design for laboratory battery researching with programmable contro system, user do not need pressing the machine manually, all the press power and press time will be controlled by Programmable.
| Model No. | PP-100J |
| Pressure Range | 0~100T |
| Piston diameter | Φ200mm |
| Pressure method | Program pressing-Program Hold-Timing relief |
| Pressure holding time | 0-999.59 min |
| Touch Panel | LCD 4.3" |
| Pressure stability | <1MPa/10min |
| Oil tank distance | 50mm |
| CIP Pressure | 300MPa |
| CIP Tank | Φ60*150mm |
| Dimension | 330*580*720mm |
| Gross Weight | 290kg |
| Power Supply | 220V/1500W |
