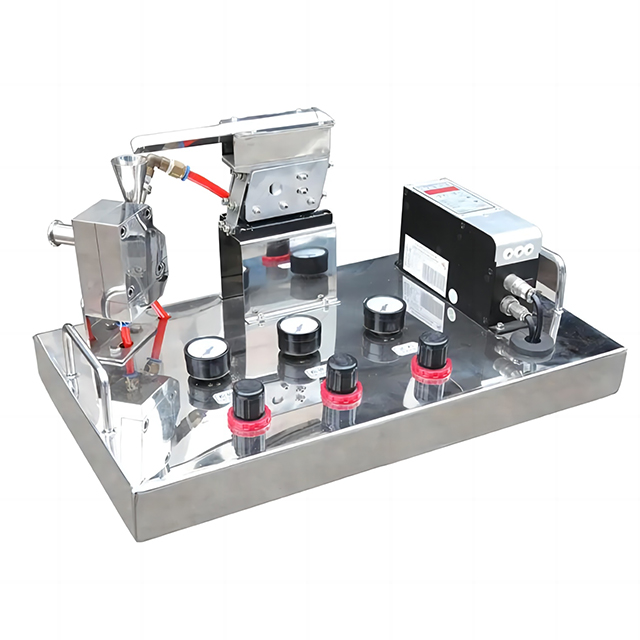

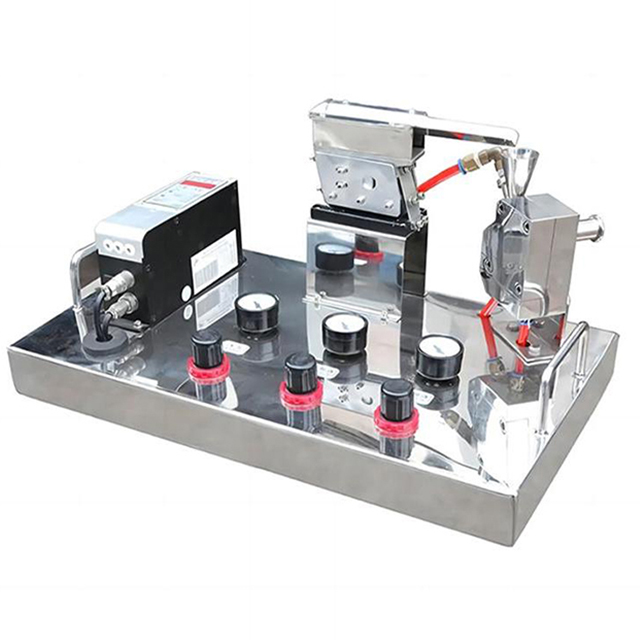

KS-AJM-50 is a lab-scale jet mill for materials with various hardness and properties. It grinds materials such as ceramic, magnet, ferrite and metallic alloy into micron-scale powder (2-5 microns) with the output rate of 50 - 500g/hr.
Technical Parameters
KS-AJM-50 is a lab-scale jet mill for materials with various hardness and properties. It grinds materials such as ceramic, magnet, ferrite and metallic alloy into micron-scale powder (2-5 microns) with the output rate of 50 - 500g/hr.
The jet mill grinds with a high-speed jet of compressed air or inert gas to collide the particles with each other. It is capable of outputting particles with the right size while continue milling particles above the desired size. Therefore, the ground product comes in a narrow size distribution and a good uniformity.
Technical Parameters:
| Model | KS-AJM-50 |
| Working Power | 208 - 240V AC 50/60Hz |
| Required Air Pressure | 0.6 - 1.0 MpaGas consumption rate: 0.5 m3/ minuteNote: Air compressor is needed for operation, you need buy it at extra cost |
| Particle | Input: 100 - 200 meshOutput: 2 - 5 micron, 50-500g/hr |
| Mill Liner | High purity fully sintered alumina |
| Net Weight | 75 kg |
| Dimensions | 480 L x 320 W x 350 H (mm) |
