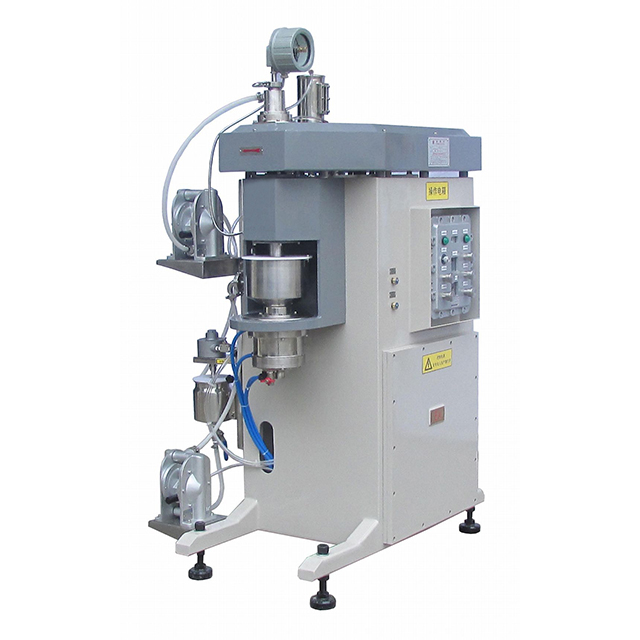

Home - Products - Grinding and Polishing Machine - Nano grade sand mill with 1.5L capacity KS-VM-SM-1.5L
In grinding process，fine particles are classified from barrel to avoid over-grinding, while coarse particles are recirculated into the mill for re-grinding, resulting in efficient production of fine particles with narrow size distribution.
Technical Parameters
Features：
1. Rotator structure: Turbine-agitator with pins
2. Barrel component: alloy steel, PU or ceramic
3. Product fineness: Micron-, submicron-, nano-sized particles
4. No mechanical sealing, and easy installation and maintenance
5. No separation screen mesh without clogging and cleaning
6. Grinding media size: Φ 0.1-2.0 mm
7. Efficient ultrafine classification and grinding
In grinding process, fine particles are classified from barrel to avoid over-grinding, while coarse particles are recirculated into the mill for re-grinding, resulting in efficient production of fine particles with narrow size distribution.
Technical parameters:
| Model | Volume (L) | Power (kW) | Rotational speed (rpm) | Flow rate (L/h) | Bead diameter (mm) | Bead Loading (vol. %) | Size (mm) | Weight (kg) |
| SM-0.5 | 0.5 | 3.7 | 1450 | 20-40 | 0.05-2.0 | 65-80 | L675×W880×H1257 | 235 |
| SM-1.5 | 1.5 | 7.5 | 1450 | 80-100 | 0.05-2.0 | 65-80 | L1140×W895×H1825 | 620 |
| SM-5 | 5 | 18.5 | 1450 | 200-300 | 0.05-2.0 | 65-80 | L1280×W1090×H1700 | 1230 |
| SM-15 | 15 | 37 | 1450 | 400-600 | 0.05-2.0 | 65-80 | L1520×W1150×H2050 | 1800 |
| SM-30 | 30 | 45 | 1480 | 600-1000 | 0.05-2.0 | 65-80 | L1765×W1220×H2250 | 2300 |
| SM-60 | 60 | 75 | 960 | 1200-2000 | 0.05-2.0 | 65-80 | L2140×W1640×H2420 | 4900 |
| SM-100 | 100 | 132 | 960 | 2500-5000 | 0.05-2.0 | 65-80 | L2260×W1690×H2590 | 5100 |
