The equipment base has large supporting area and the arm bend is strong which makes the gravity of equipment lower, thus it can be placed stably and reliably. There is a 45 º tilt angle between the eyepiece and supporting surface, and this make it comfortable to observe.
Technical Parameters
1. Application:

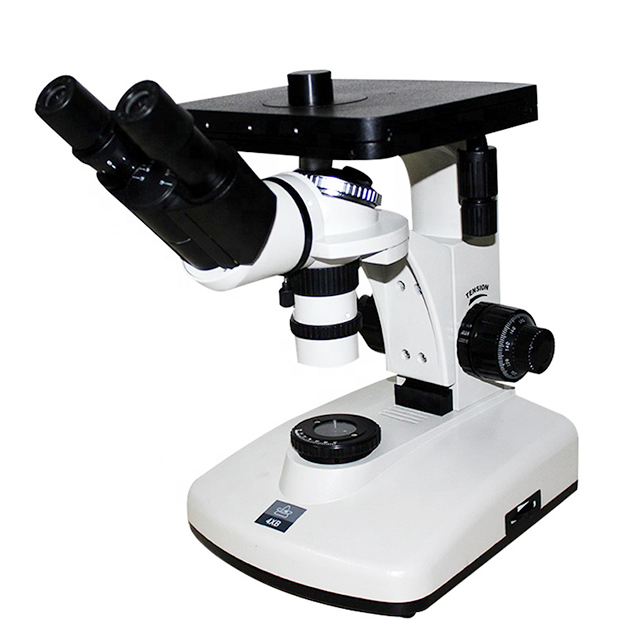

This device is a kind of inverted type optical microscope. Due to the surface of specimen to be observed coinciding with the table surface, it has no limit to the height of specimen. It features convenient operation, compact structure and elegant appearance. The equipment base has large supporting area and the arm bend is strong which makes the gravity of equipment lower, thus it can be placed stably and reliably. There is a 45 º tilt angle between the eyepiece and supporting surface, and this make it comfortable to observe.
2. Main technical specifications:
1.Eyepiece
| Item | Magnification | N. A |
| Flat fielding eyepiece | 10X | 18 |
| 12.5X | 15 |
| Item | Magnification | N. A | System | Working distance (mm) |
| Achromatic lens | 10X | 0.25 | Dry | 7.31 |
| Semi-flat-field Achromatic lens | 40X | 0.65 | Dry | 0.66 |
| Achromatic lens | 100X | 1.25 | Oil | 0.37 |
2. Magnifications: 100X-1250X
3. Mechanical tube length: 160mm
4. Micro Focus: Adjusting range: 7mm, grid value: 0.002mm
5. Rough Focus range: 7mm
6. Mechanical table: 75 x 50mm
7. Lighting bulb: 6V, 12W Bromine tungsten lamp
8. Weight: 5 Kg
9. Packing dimensions: 360 x 246 x 350 mm
