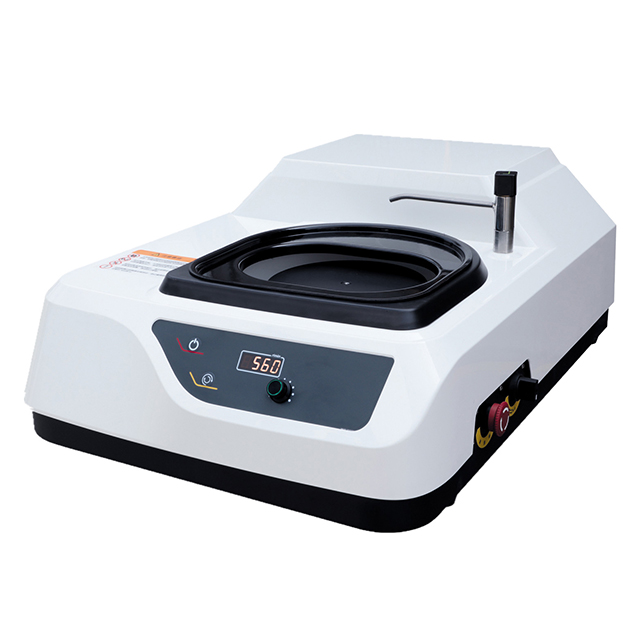

Home - Products - Grinding and Polishing Machine - Metallographic grinding polishing machine with single plate KS-GPM-1B
This grinder polisher is of single plate. It is suitable for pre grinding, grinding and polishing metallographic specimens. Since the machine is speed-adjusted by microprocessor, it can run at a revolution of 0 to 1400rpm, which favors the machine with wide applications.
Technical Parameters
Applications
This grinder polisher is of single plate. It is suitable for pre grinding, grinding and polishing metallographic specimens. Since the machine is speed-adjusted by microprocessor, it can run at a revolution of 0 to 1400rpm, which favors the machine with wide applications. The machine is equipped with cooling system that can cool down the specimen during pre-grinding so as to prevent overheating and damage the metallographic structure. Featuring easy operation and reliable performance, it is an indispensable device for the factories, research institutions and college labs to prepare metallographic specimen.
Technical Parameters:
| Model | KS-GPM-1B |
| Wheel diameter | Φ203mm |
| Rotational speed | 0-1400r/min |
| Rotational direction | Clockwise or anticlockwise |
| Emergency stop | YES |
| Input voltage | AC220V 50Hz |
| Wheel quantity | 1 |
| Input power | 0.75KW |
| Dimension | 594*795*310mm |
| Net weight | 40kg |
