Electrolytic polishing corrosion instrument KS-GPM-06X

Product Description:

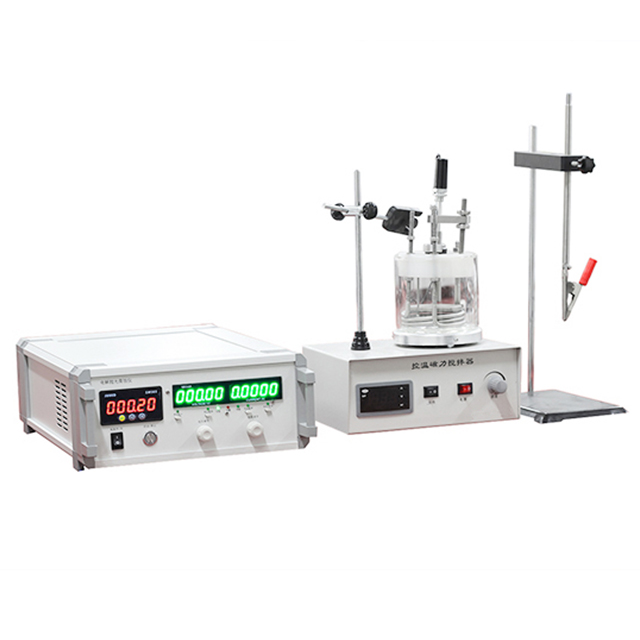

KS-GPM-06X Electrolytic Polishing Corrosion Apparatus is a metallographic sample preparation instrument that integrates electrolytic polishing and corrosion functions. It is suitable for use in laboratories such as factories, colleges and universities, scientific research institutions, etc. This equipment uses electrochemical principles for the preparation of metallographic samples. It can also be used for polishing and corrosion of metallographic samples. It has the advantages of fast sample preparation, good repeatability, and no mechanically processed deformed layer. It is an ideal equipment for preparing metallographic samples of non-ferrous metal samples, steel, especially stainless steel.

Features:

1. Large voltage and current range, which can simultaneously satisfy the polishing and corrosion of various materials;
2. Realize constant current and constant voltage working methods;
3. DC 0~100V / 0~6A, current/voltage values can be customized;
4. The voltage and current have coarse adjustment and fine adjustment switching functions, which can set the voltage and current value quasi-stable;
5. Voltage and current adjustment, display accuracy to two decimal places;
6. Low electrical signal ripple and high stability;
7. Power supply over-voltage , Overheating and mains input over-voltage protection;
8. The polishing/corrosion area of the sample can be controlled (the diameter of the sample cover opening is 15mm, 20mm, 30mm);
9. The polishing/corrosion working time is controlled;
10. The stirring device ensures the polishing /The corrosive medium is uniform, and the sample surface environment is consistent;
11. The working voltage and current can be input to the computer for further data analysis and research (optional: RS232, RS485, wireless connection, three connection methods, optional communication with the computer).

Technical Parameters:
