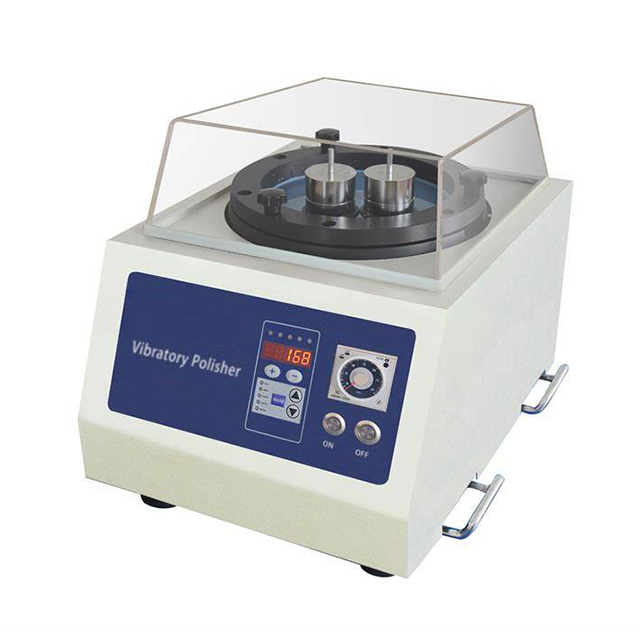

Compact Vibratory Polisher (9 or 12 inch) with Complete Accessories - KS-GP-900Z

1.The newly designed vibration polishing machine is widely used in enterprises, institutions and scientific research institutions, and it is very effective for the preparation of samples for SEM and EBSD analysis. Completely surpasses the foreign similar product.

2. A new generation of frequency conversion control, sample surface polishing more perfect, digital display of operating parameters.

3. Automatic polishing without operator's participation. The running time can be set to realize unattended automatic polishing, improve the working efficiency of personnel and reduce the cost of enterprises.

4. High strength FRP shell, anti-corrosion, anti-collision. The transparent dust cover can ensure the cleanness of the polishing disc.

5. It can carry mosaic samples or larger samples without mosaic.

6. Different specifications of sample holder: 1, 1.25, 1.5, 2 inches, 32mm, 50mm optional, special specifications can be customized.

1.Working disc diameter: 228.6mm

2. Input voltage: 110 / 220 V, 50 / 60 Hz

3. Power: 350W

4. Frequency: 0 ~ 240Hz

5. Maximum setting time: 9999 minutes

6. Dimensions L x W x H: 530 x 530 x 430 mm

7. Weight: 82kg

1.25 inch fixture

3pcs1.25 inch clamp

1pc1.25 inch counterweight

3pcsPolishing pads (frosted leather, synthetic leather)
