The machine is equipped with clamps for holding samples of various sizes and specifications, and at the same time, the vibration amplitude can be adjusted according to the weight of the sample to obtain different polishing effects.
Technical Parameters
Product Description：

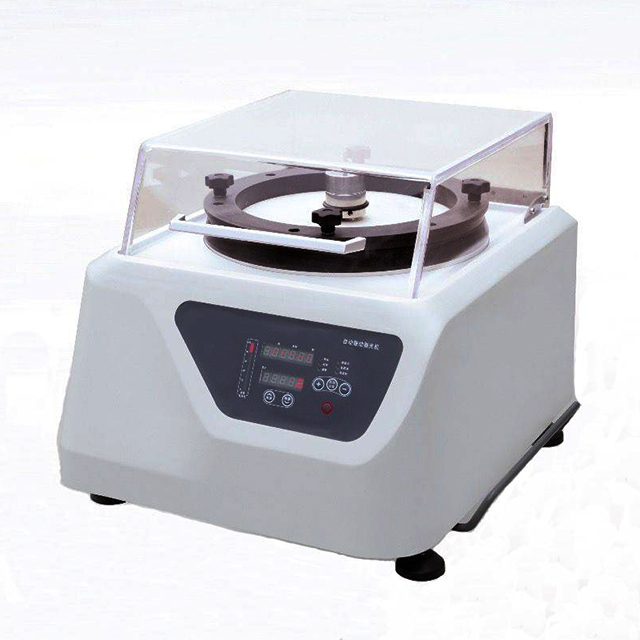

The purpose of this machine is to produce a small amount of grinding and polishing on the sample through the high-frequency vibration of the body to achieve a smooth finish that meets the test. This processing method can minimize the wear of the sample, and it is a slow processing process. The machine is equipped with clamps for holding samples of various sizes and specifications, and at the same time, the vibration amplitude can be adjusted according to the weight of the sample to obtain different polishing effects.
Vibration polishing is widely used in various industrial test fields, and the operation is simple and convenient.
Technical Parameters:
| Model | KS-GP-12S |
| Power supply | 220V/110V |
| Input power rate | 750W |
| Frequency | 0-240Hz |
| Working plate diameter | Φ290 mm |
| Sample diameter | Φ20-50 mm |
| weight | 130 Kg |
| Out dimension | 585*510*438 mm |
