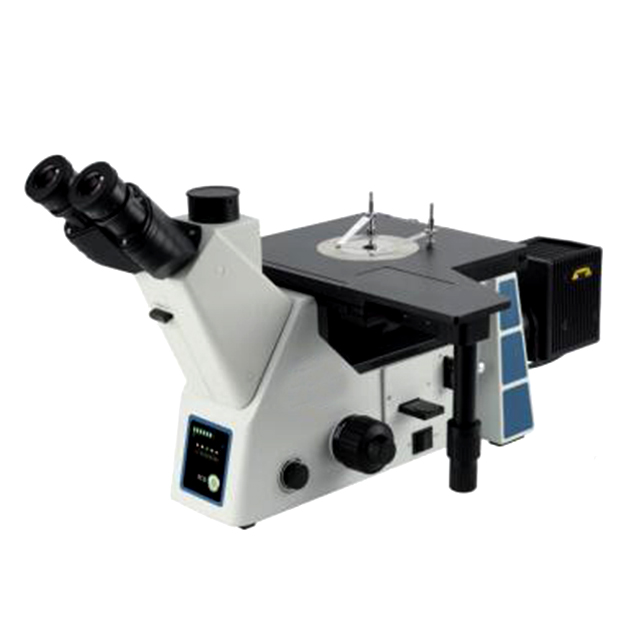

Three eyes observation cylinder, 45° tilt, hinge group can be 360° rotation, fixed type lens cylinder,
pupil distance adjustment range of 50-75mm, two-gear light separation ratio: binocular: three eyes =100:0 or 0:100
Technical Parameters
Technical Parameters:
| optical system | Infinite distal chromatic difference optical system |
| viewing head | Three eyes observation cylinder, 45° tilt, hinge group can be 360° rotation, fixed type lens cylinder, pupil distance adjustment range of 50-75mm, two-gear light separation ratio: binocular: three eyes =100:0 or 0:100 |
| eyepiece | High eye point large visual field flat field entry lens PL10X / 22mm, adjustable visibility; |
| High eye point Large visual field flat field microscope PL10X / 22mm with adjustable visibility (optional) | |
| High eye point Large field flat field lens PL15X / 16mm with adjustable visibility (optional) | |
| Flat field half eliminationLight and dark field objective | Infinite long working distance from the flat field semi-complex antichromatic gold phase objective 5X-DIC LMPL5X / 0.15 WD 9.0mm |
| Infinite long work is 10-DIC LMPL10X from the flat field semi-complex antichromatic gold phase objective / 0.3 WD 9.0mm | |
| Infinity distance operation is 3.4 m m from the flat field 20X-DIC LMPL20X/0.45WD objective | |
| 50X LMPLFL50X / 0.55 WD7.5mm | |
| The infinite long work is 100X LMPLFL100X / 0.80 WD2.1mm from the flat field achrommatic gold phase objective | |
| revolving nosepiece | Internal positioning of the 5-hole bright field converter |
| body frame | Reflective light and dark field gold camera frame, using low hand position, coarse fine-tuning coaxial, coarse adjustment stroke of 9mm, focus face on 6.5mm,Down 2.5mm, fine tuning precision 0.002mm with slip relief |
| Tadjust hand wheel; with light and dark field switching device, with variable field appendix, aperture appendix, adjustable center; with color filter slot and polarizer slot. | |
| lighting system | Adopt external wide voltage transformer with input 100-240V and output 12V5A, the brightness is continuously adjustable and independently controlled, with light source brightness indication bar and infrared sensing function |
| objective table | Three-layer mechanical mobile platform, platform size: 240 (W) 250 (L), mobile range of 5050mm, two-way rail transmission, right hand low hand control |
| collecting mirror | Long working distance removable light mirror group, numerical aperture N.A.0.3 |
| other | Start mirror insert, fixed mirror, 360° rotating mirror insert; color filter group; |
| Gold phase analysis software | Goldphase automatic analysis system, JX2018 version |
| A 12-megapixel atlas camera | |
| 0.5X Adapter mirror. | |
| Micrometer (precision is 0.01mm). |
