portable precision diamond wire saw for ceramics, crystals, glass, metals, rocks, materials

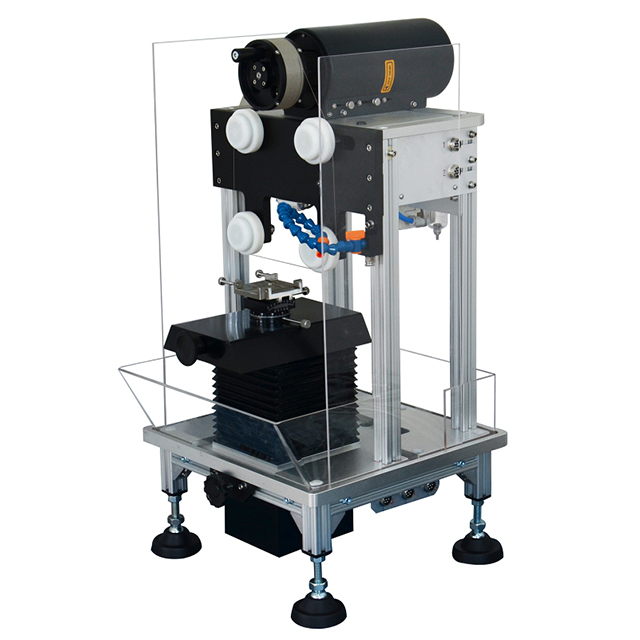

KS-STX-202AQ small diamond wire cutting machine is specially designed for material researchers. It is used for precision cutting of brittle material samples. It can slice, cut, and square the material. Cuttable materials include ceramics, crystals, glass, metals, rocks, thermoelectric materials, infrared optical materials, composite materials, and biomedical materials. This machine is a diamond wire cutting machine that can perform continuous cutting. After setting the cutting program, the sample is continuously fed without manual adjustment. The size of the sample after cutting has a high dimensional accuracy within the range of ±10μm. The cutting line adopts the reciprocating movement mode of a single line, the length of the usable line is long, the service life of one thread is long, and the cutting efficiency is improved. The tensioning wheel adopts the pneumatic tensioning mode. The air pressure can be adjusted according to the thickness of the wire diameter. When the wire diameter is too small, it can effectively protect the cutting wire from breaking due to excessive tension. When the cutting machine is used with the electric turntable, it can perform precise cutting, and the surface of the cut sample is in good condition. When using it for ultra-thin precision cutting, the thickness of the cut sheet (within the range of about 1 inch) can reach 0.08mm.

Main feature:

1. It can be used for cutting various materials with different hardness, especially for brittle and easy cleavage crystal cutting.

2. The operation is simple and the processing quality is excellent.

3. The aluminum profile structure is adopted, which is beautiful and light.

4. Pneumatic tensioning is adopted, the output of tensioning force is more uniform and the adjustment is more accurate.

5. The minimum diameter of Ø0.08mm diamond wire can be used

Technical Parameters:
