Mounting is a very important process of metallographic sample preparation, especially for some difficult holding tiny samples, irregularly shaped samples, and what needs for protecting edge or automatic grinding and polishing, mounting is an essential procedure before sample preparation
Technical Parameters

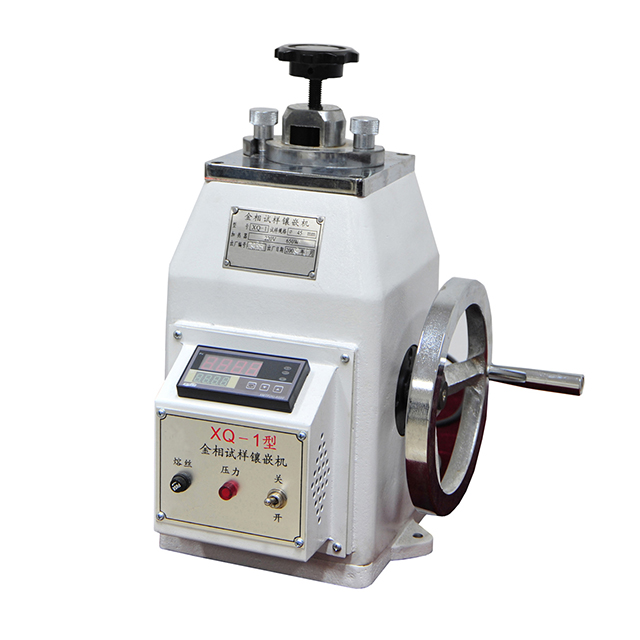

Mounting is a very important process of metallographic sample preparation, especially for some difficult holding tiny samples, irregularly shaped samples, and what needs for protecting edge or automatic grinding and polishing, mounting is an essential procedure before sample preparation. KS-XQ-1 metallographic sample mounting press adopts manual mechanical pressure, and heating temperature is controlled by the digital temperature controller. It has stable and reliable performance and easy operation, which is the economic choice for sample mounting. (Only for thermosetting materials, such as Bakelite powder, Urea formaldehyde molding powder etc.)
Technical Parameters:
| Model | KS-XQ-1 |
| Mould Diameter | Ф25mm，Ф30mm，Ф40mm (Choose one) |
| Cavity Height | 82mm, effective 40mm |
| Heating Power | 440W |
| Power Supply | 220V, 50Hz，5A |
| Dimensions | 340×260×430mm |
| Net Weight | 32kg |
